CL704 Racing junior Mk1 with Becket

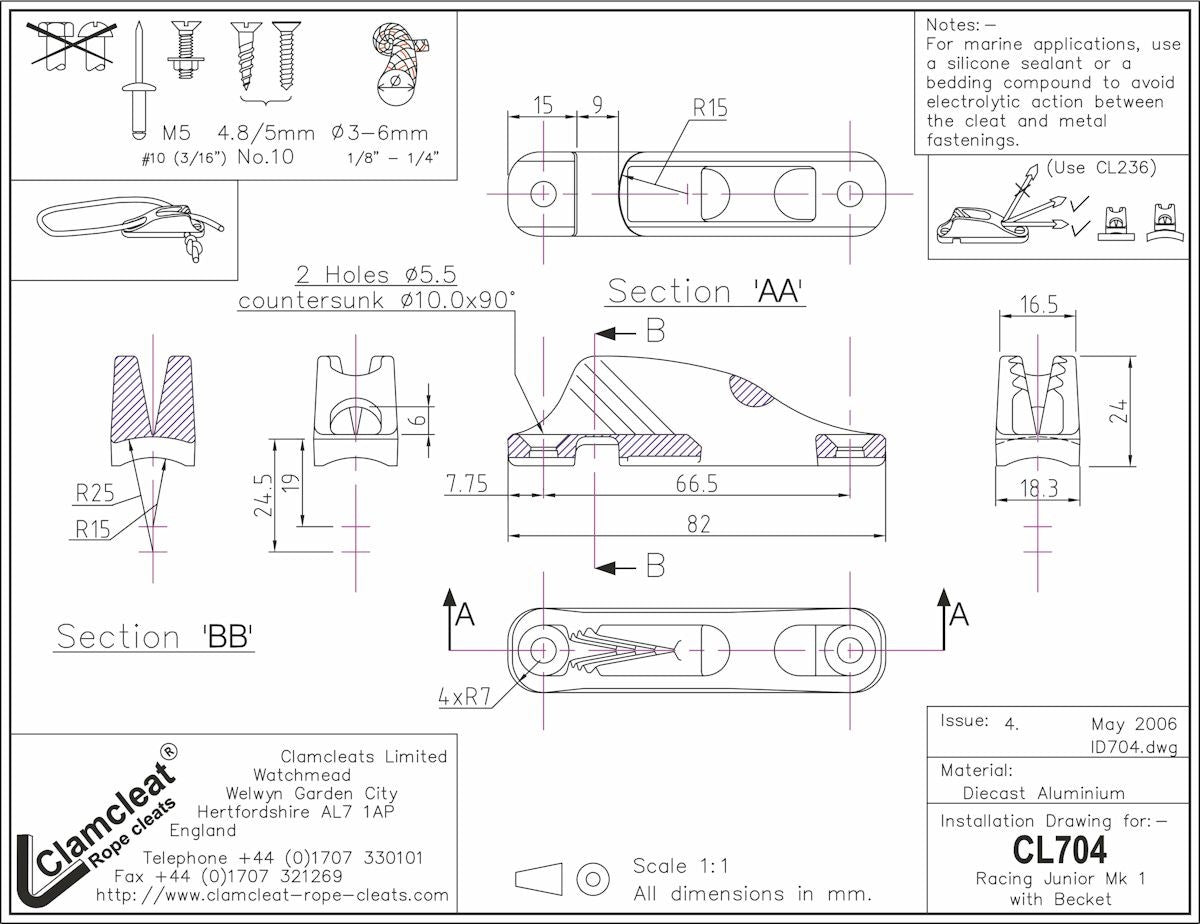

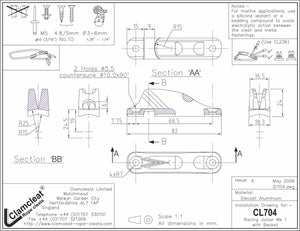

Technical Details		Metric	Imperial

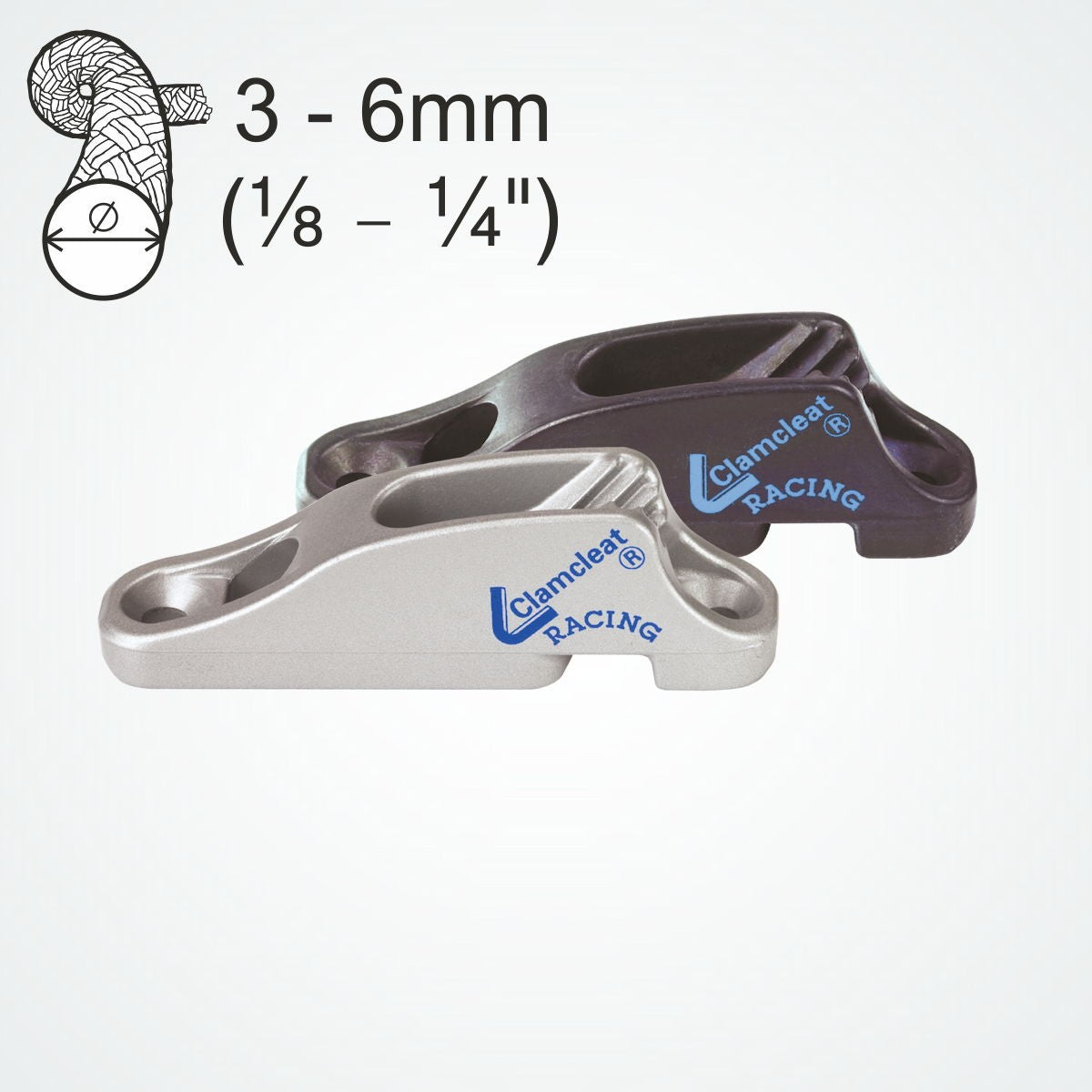

Rope Diameter		3 - 6mm	1/8 - 1/4"
Material		Aluminium	Aluminium
Hole Centres		66mm	2 5/8"
Length		82mm	3 1/4"
Width		18mm	11/16"
Height		24mm	15/16"
Bolt Size		M5	#10-24. 3/16"
Screw Size		4.8	No 10
Weight		34gms	1.2oz

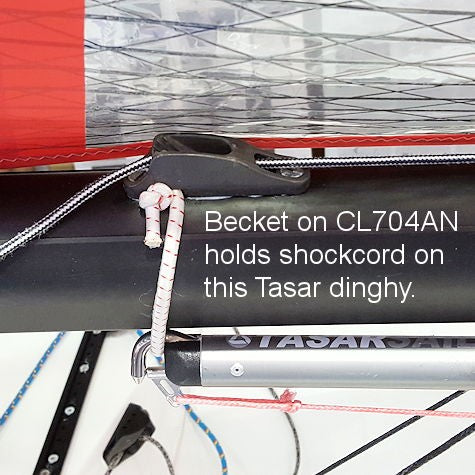

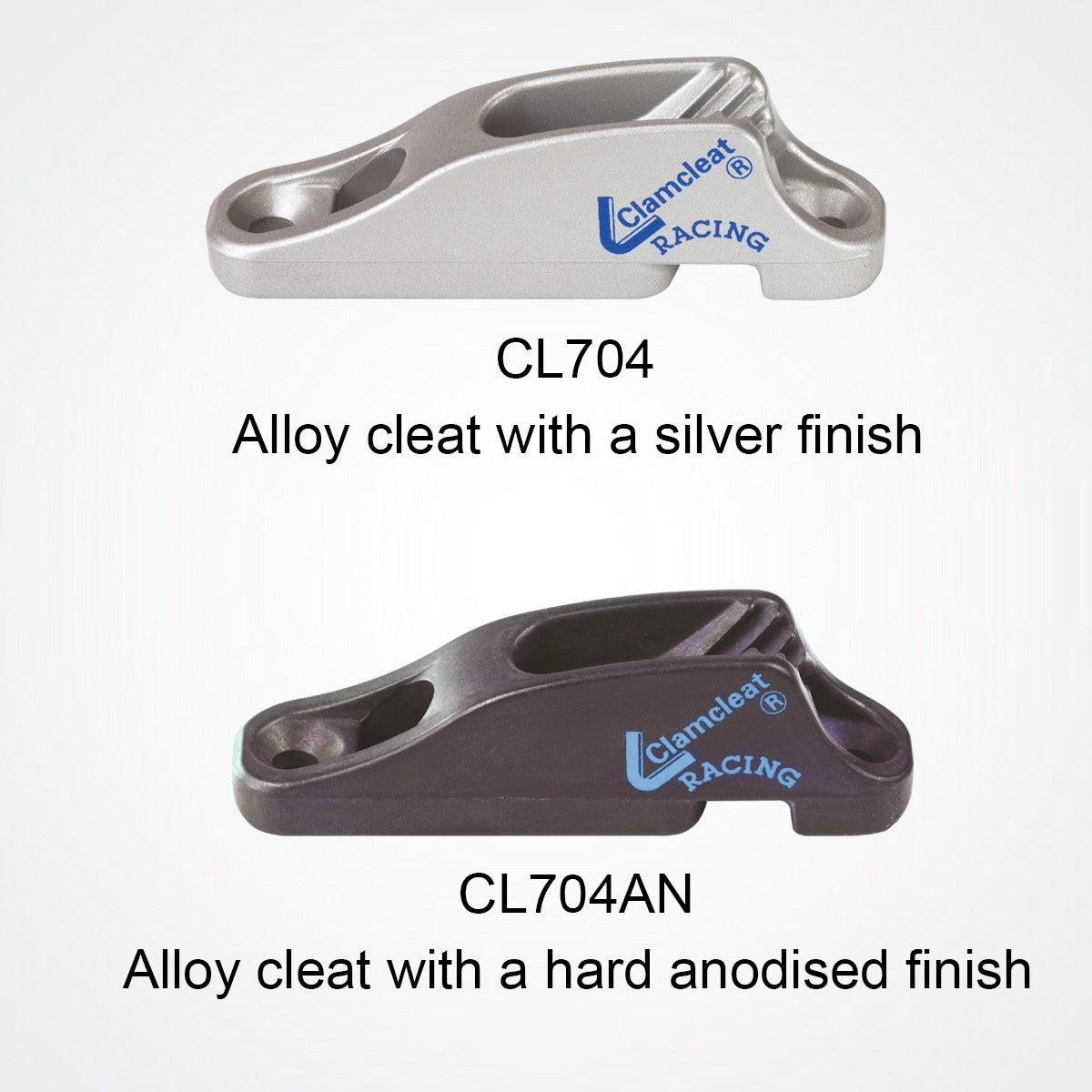

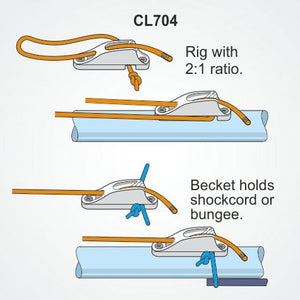

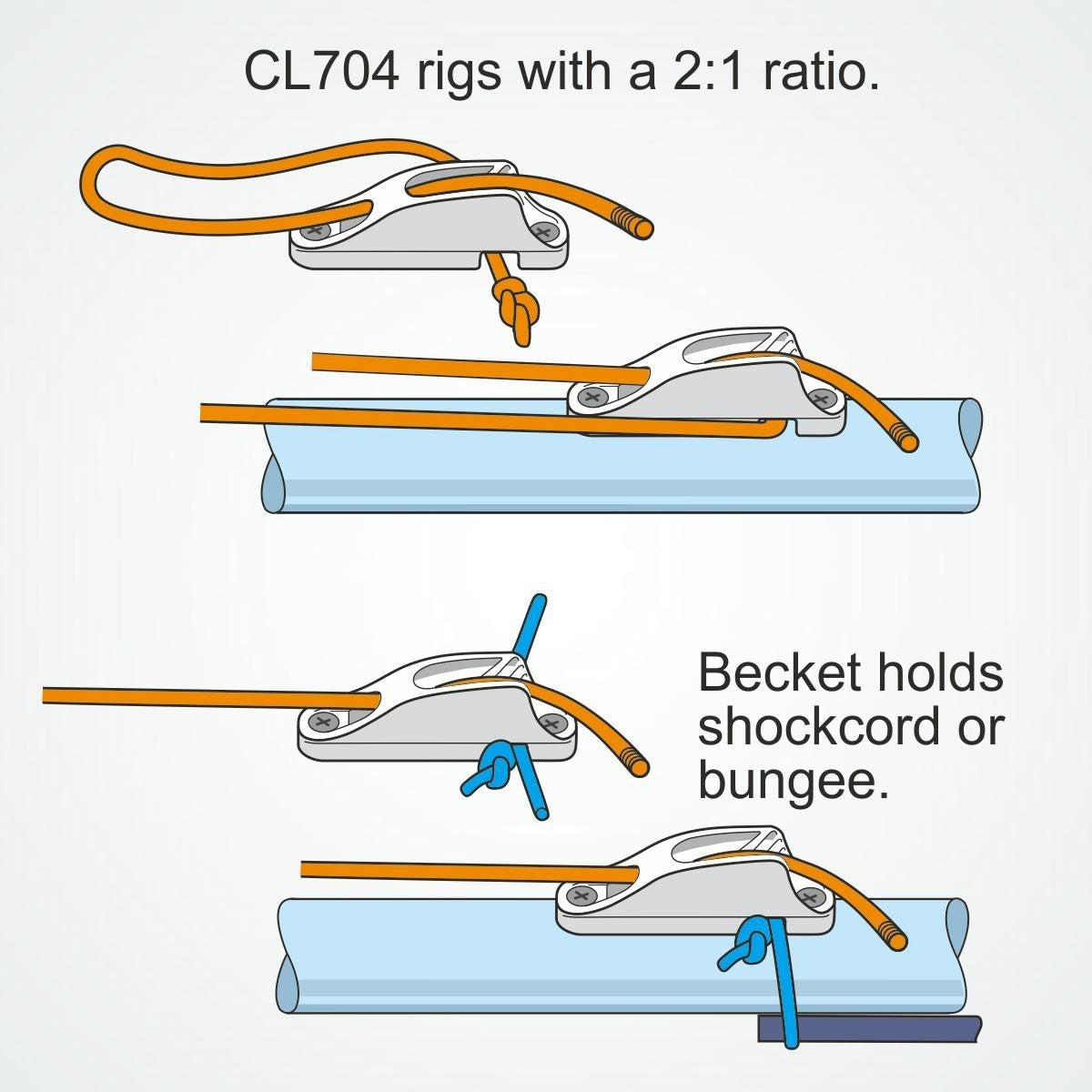

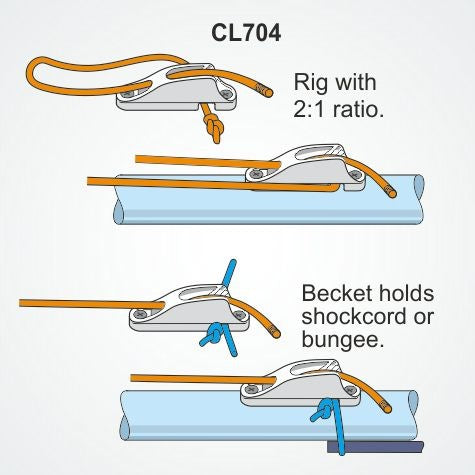

The becket holds the end of the rope under the cleat to allow rigging with a 2:1 advantage. Becket also holds shockcord & bungee. No need for extra parts. Ideal for Cunningham adjustment. Use as a deck cleat or fit onto masts, booms and curved surfaces. On the photo of a CL704AN on a Tasar boom, note the sealant used between the cleat and boom, to avoid corrosion. Manufactured from aluminium for a light weight and durable performance the CL704 is available in two finishes: 1. CL704 has a silver stove enamel finish for a cost effective, high quality coating. 2. CL704AN has a hard anodised finish to give a hard wearing surface.
