| Technical Details | Metric | Imperial | |
|---|---|---|---|

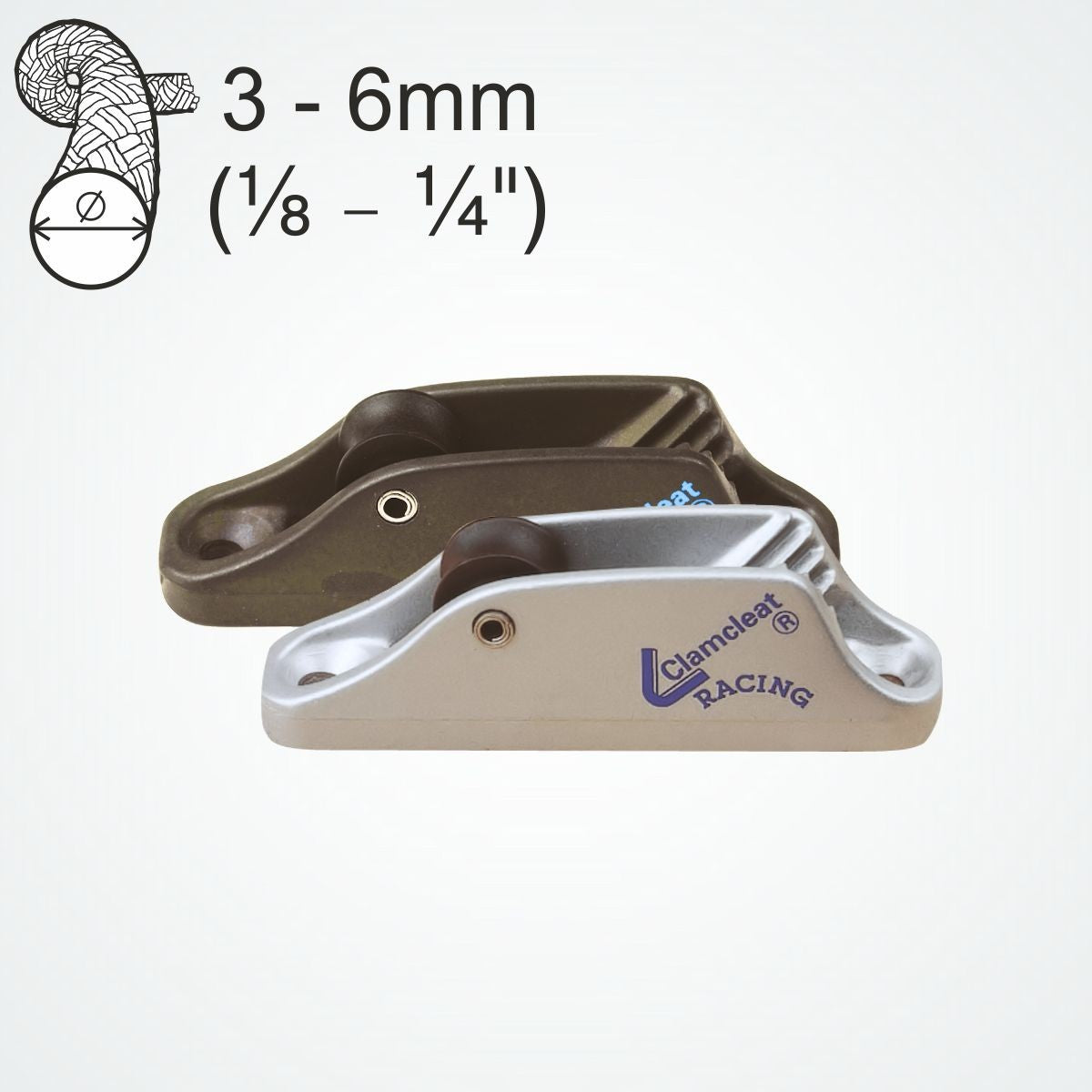

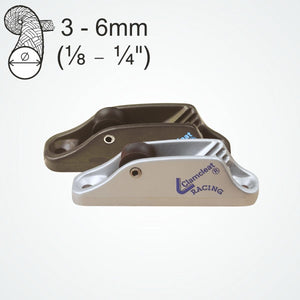

| Rope Diameter |  |
3 - 6mm | 1/8 - 1/4" |
| Material |  |
Aluminium & Nylon | Aluminium & Nylon |

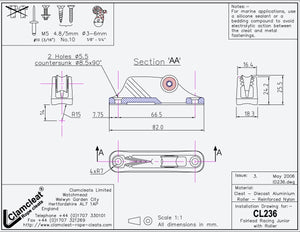

| Hole Centres |  |
66mm | 2 5/8" |
| Length |  |
82mm | 3 1/4" |
| Width |  |
18mm | 11/16" |
| Height |  |
25mm | 1" |
| Bolt Size |  |
M5 | #10-24. 3/16" |
| Screw Size |  |
4.8 | No 10 |
| Weight |  |
40gms |
1.4oz |

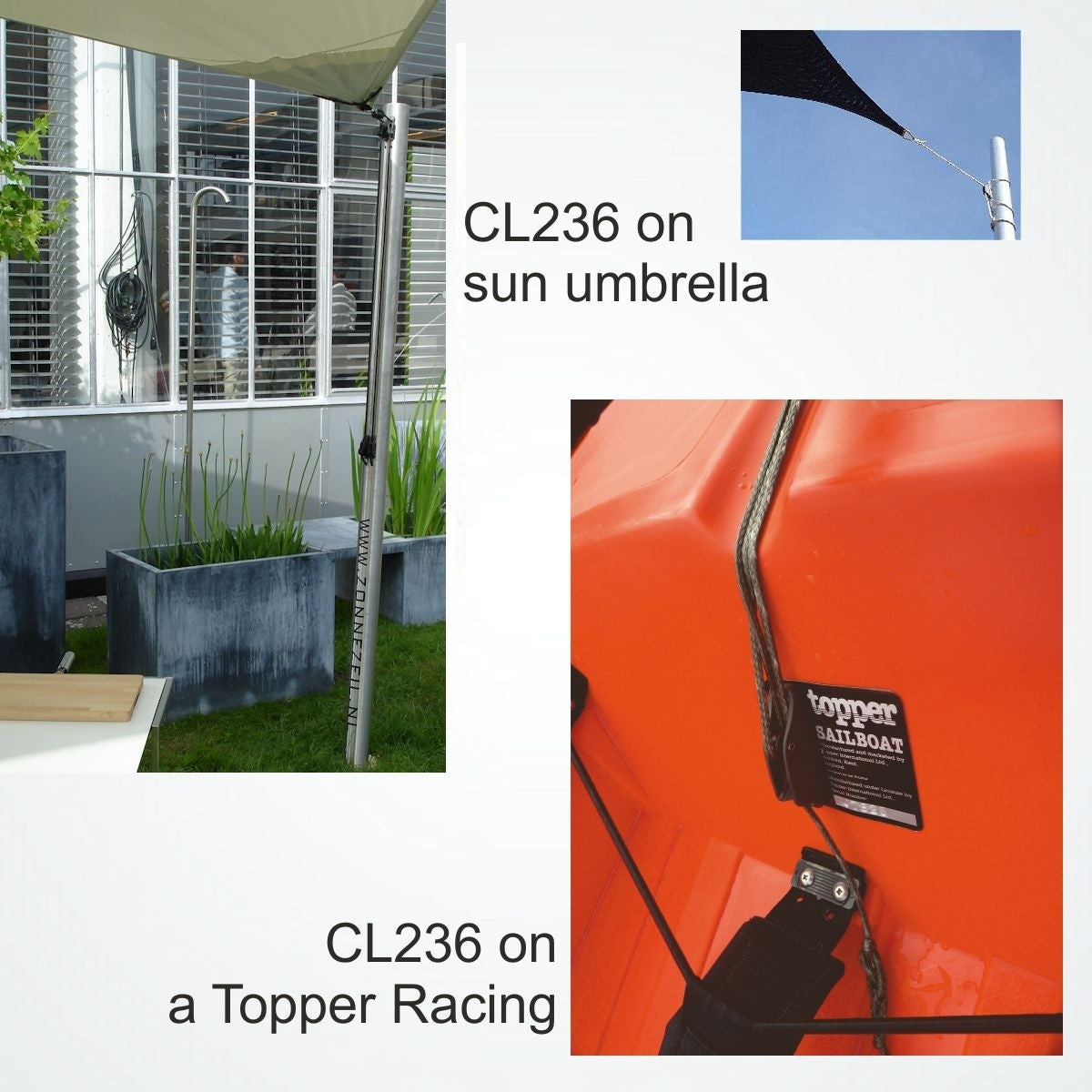

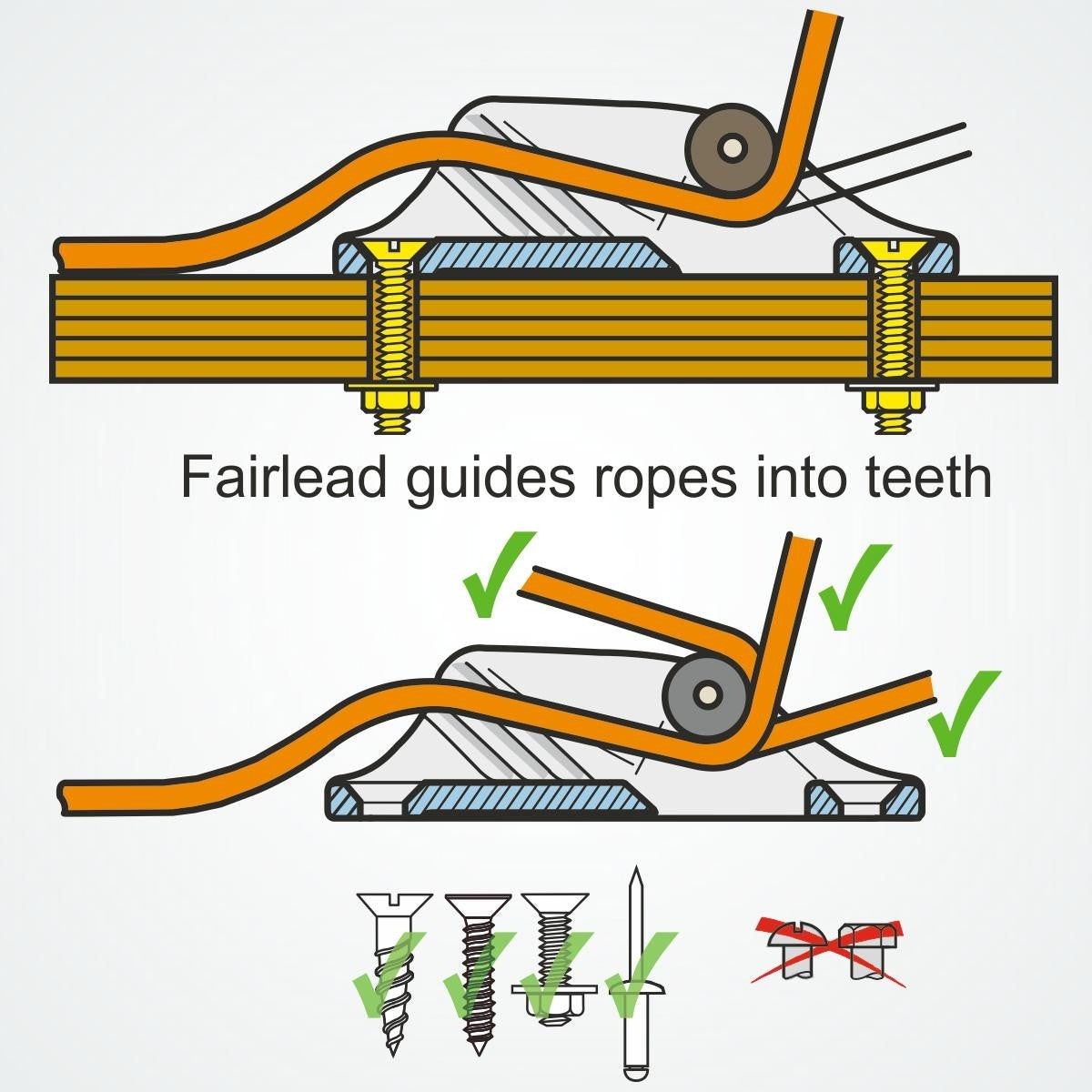

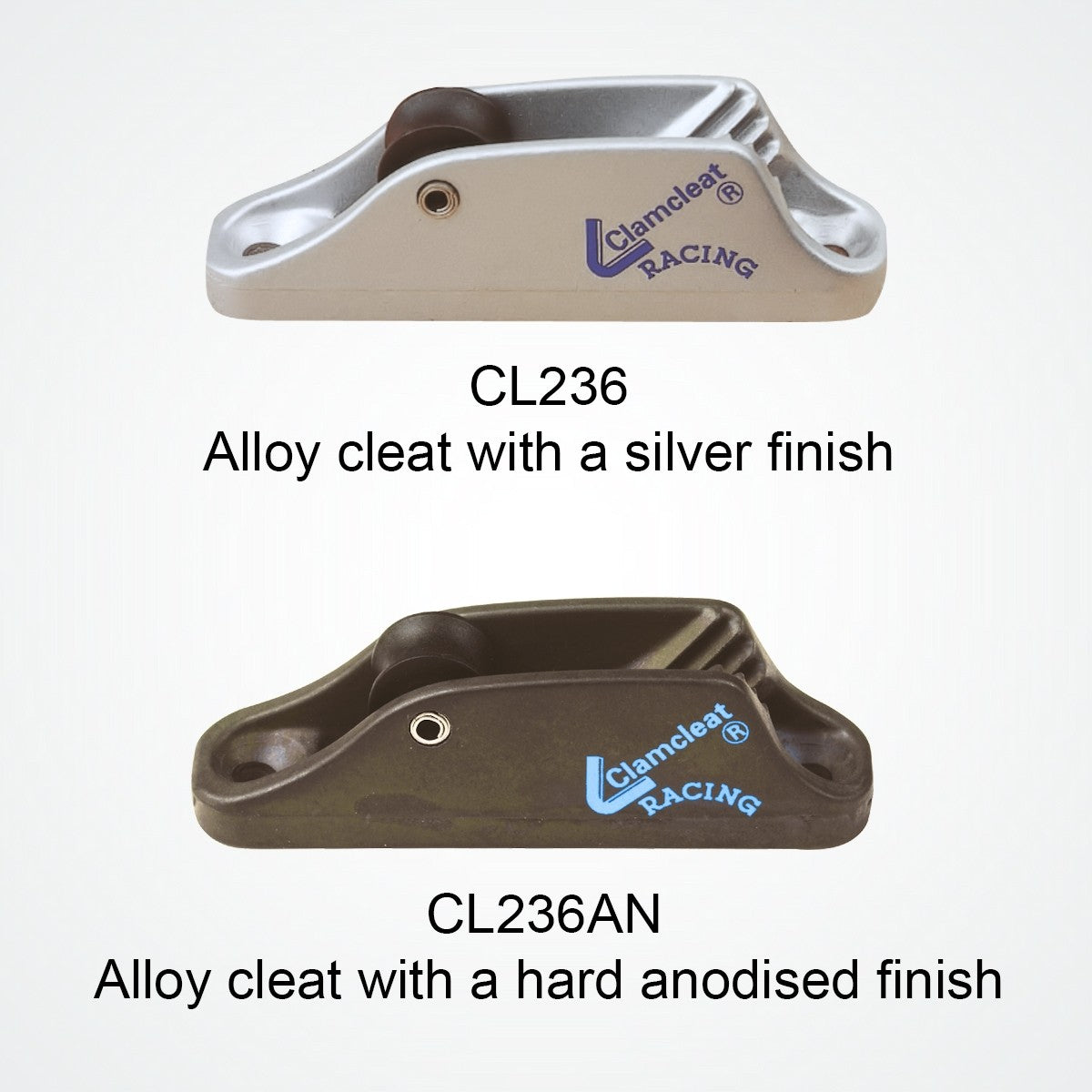

The roller fairlead allows ropes to enter the cleat from above. Ideal for sun umbrellas, shades & sun sails. Also dinghy control lines. Available in two finishes: - CL236 has a silver stove enamel finish for a cost effective, high quality coating. - CL236AN has a hard anodised finish to give a hard wearing surface. A nylon version is available for lower loads - CL203/S1. This cleat can be used for drop-down work surfaces. For instance, Mess Box uses them for their kitchens.
