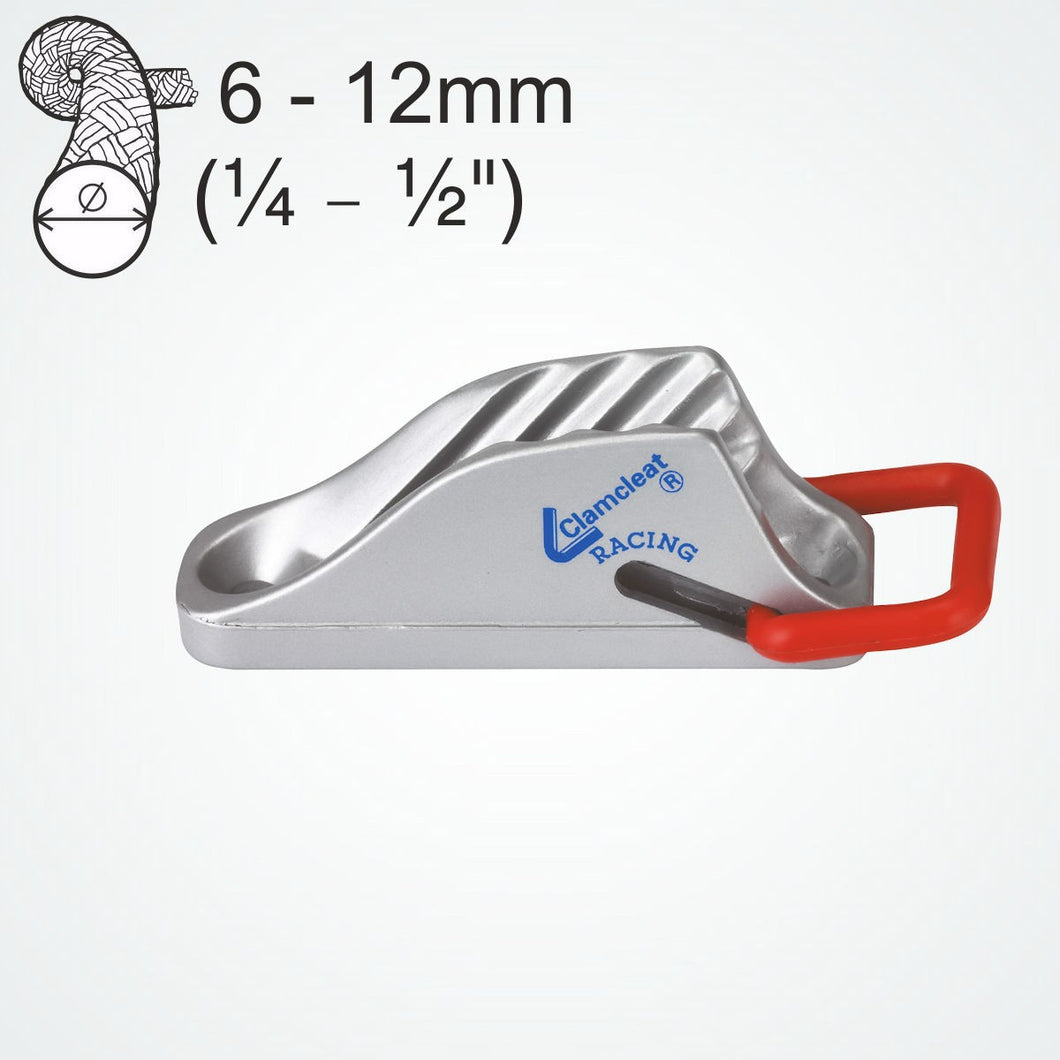

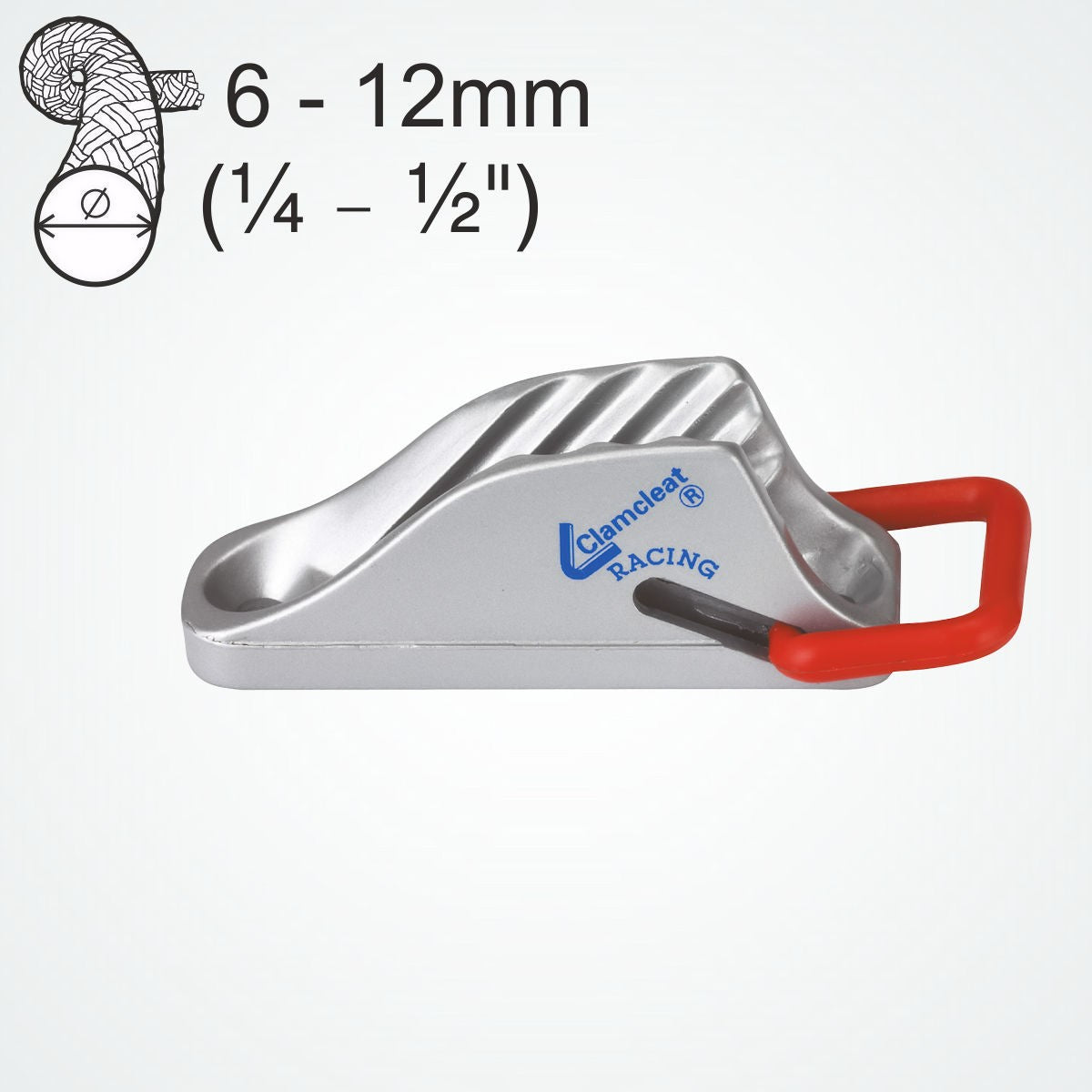

Clamcleat CL238 Racing Vertical with Spring Gate

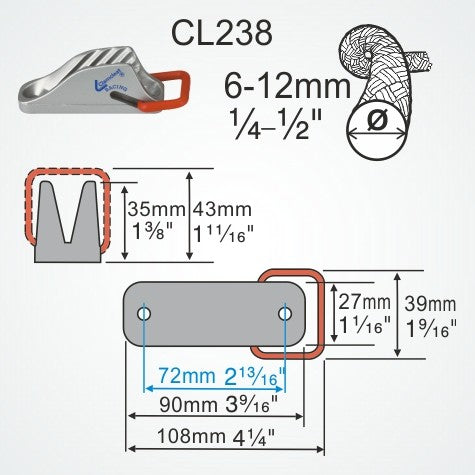

Technical Details		Metric	Imperial
Rope Diameter		6 - 12mm	1/4 - 1/2"
Material		Aluminium	Aluminium
Hole Centres		72mm	2 27/32"
Length		91mm	3 9/16"
Width		40mm	1 9/16"
Height		33mm	1 5/16"
Bolt Size		M6	1/4"
Screw Size		6.3	No 14
Weight		75gms	2.6oz

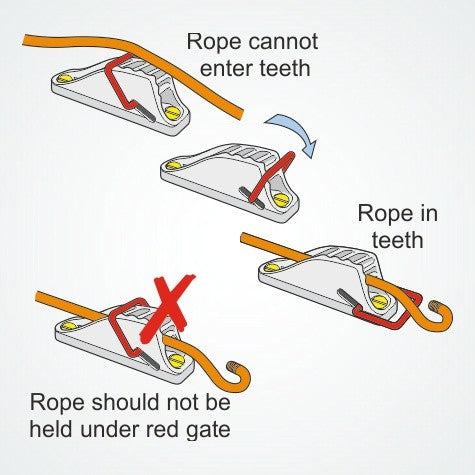

When using the Clamcleat® CL238, the red gate is flipped up by hand to keep the rope out of the alloy cleat and prevent unintentional entry of the rope into the cleat. - The CL238 is a modified CL219, so you will see "CL219" engraved on the bottom of the cleat.. - Also available in Nylon - see CL237 below. - Spare red Gate available as PT238GATE - see below. - Usng a CL804 Tapered Pad can aid rope alignment. - A larger version of the CL238 is the CL240.
