Clamcleat CL244 Aluminium Boom Cleat and Clamps

Technical Details		Metric	Imperial
Rope Diameter		6mm	n/a
Material		Aluminium & Nylon	Aluminium & Nylon
Hole Centres		n/a	n/a
Length		67mm	2 5/8"
Width		n/a	n/a
Height		n/a	n/a
Bolt Size		n/a	n/a
Screw Size		8	4.2
Weight		32gms	1.1oz

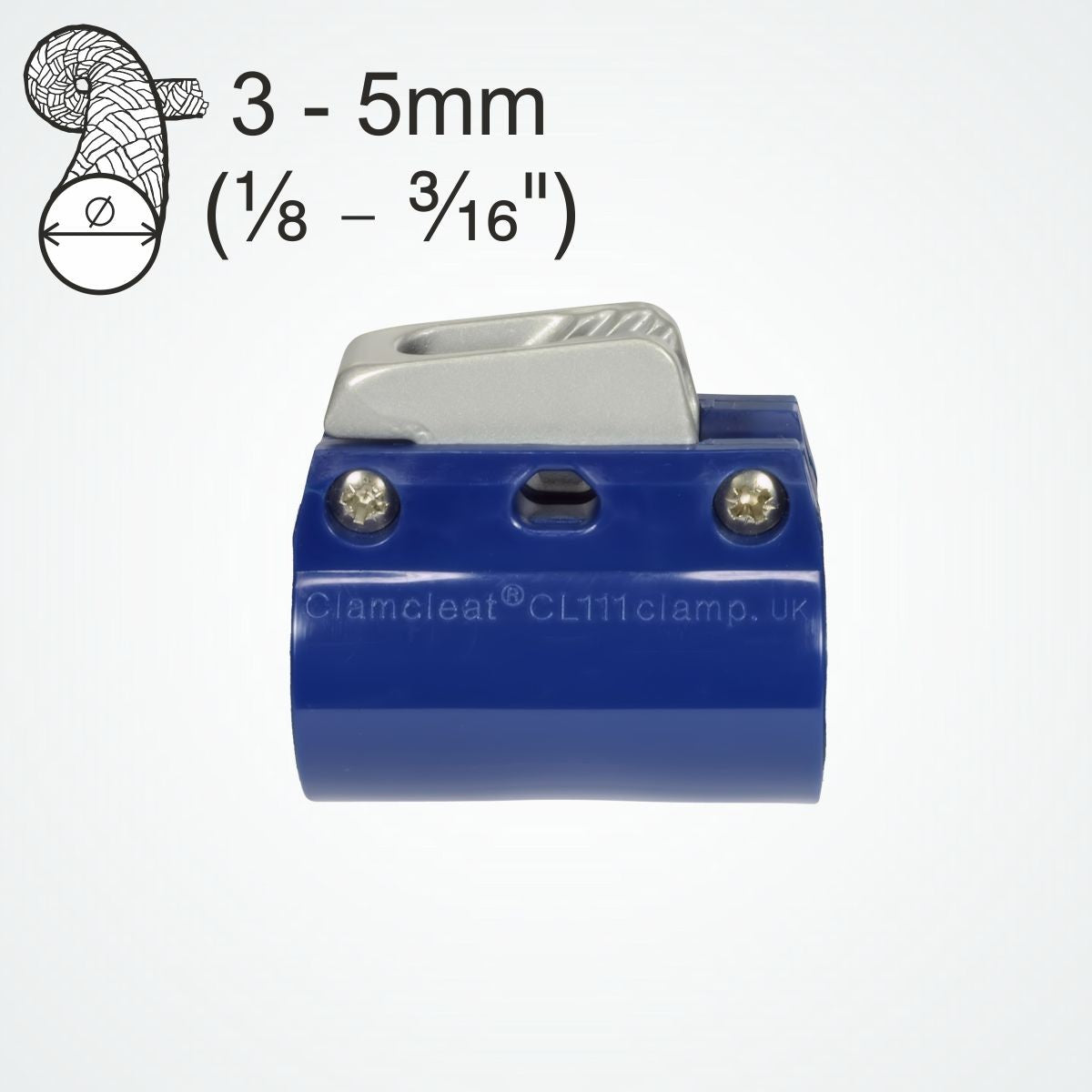

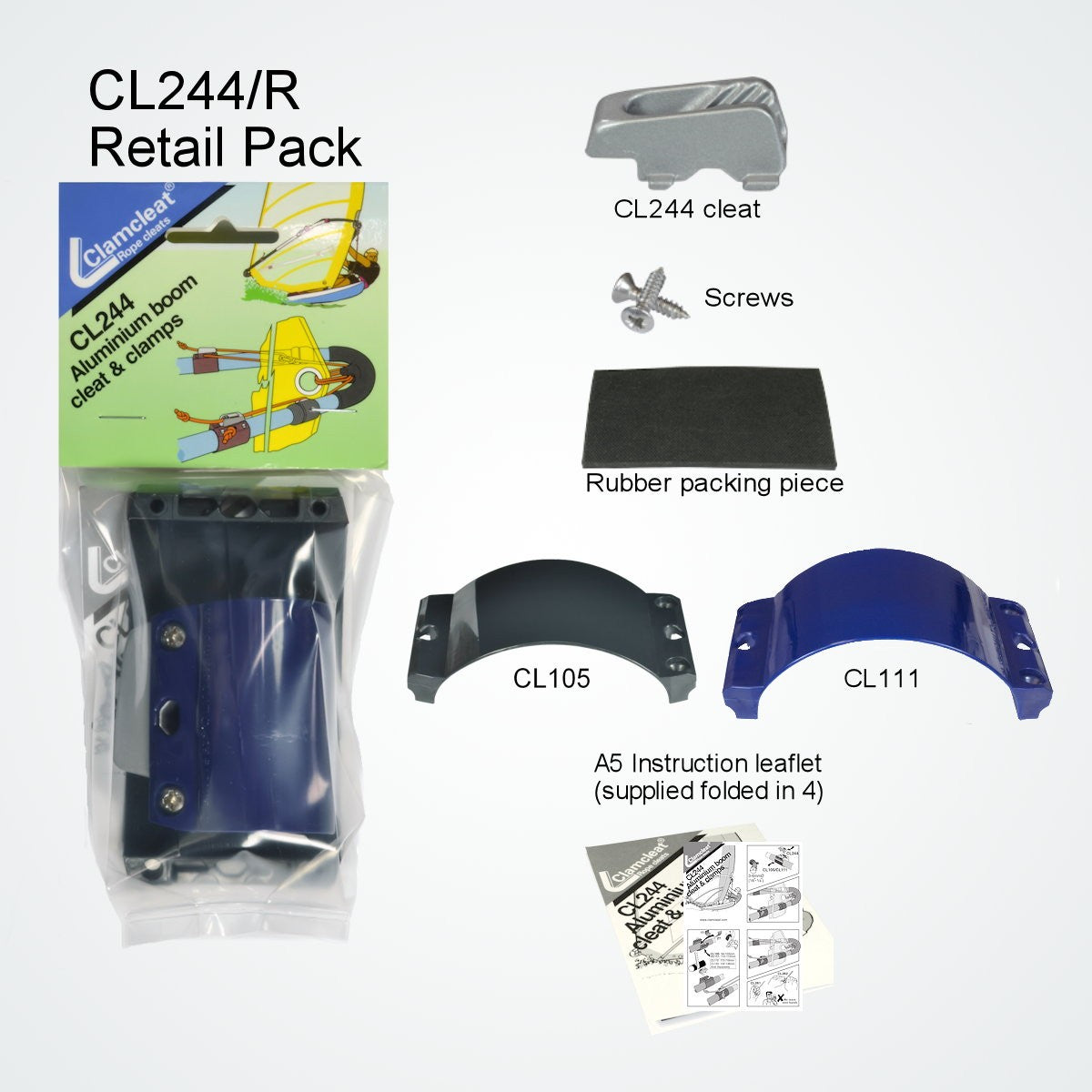

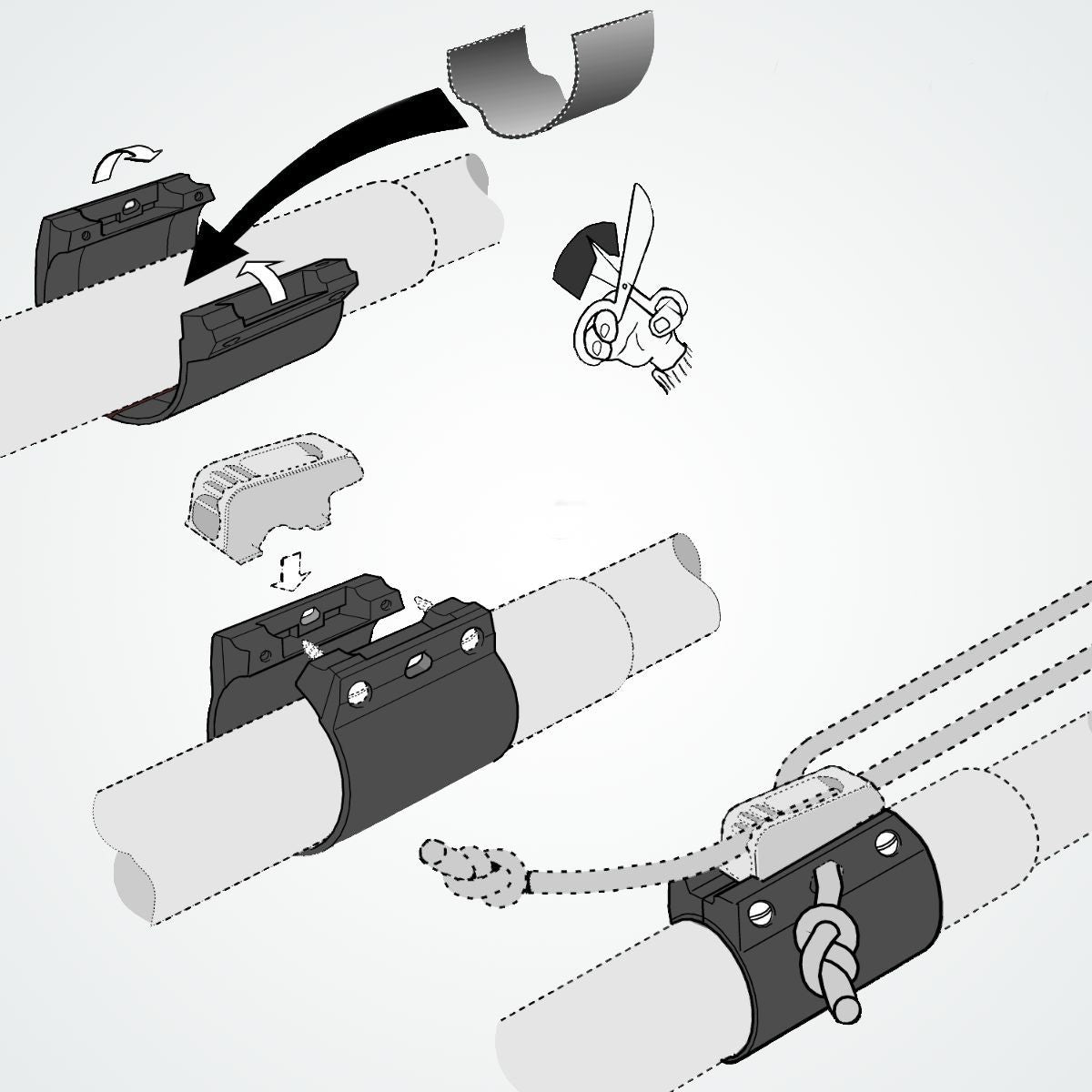

The Clamcleat® CL244 clamps onto flag poles, tubes and windsurf booms. The high strength alloy cleat fits into the nylon clamp, which is held by 2 screws. A rubber friction packer provides a strong grip on bare metal poles and allows for some variation in tube diameter. Four sizes of clamp are available, to fit tube diameters from 30 - 42mm (1 1/8" - 1 5/8"Ø). The retail pack is complete with 2 clamps and instructions. For manufacturers, separate parts can be supplied for specific applications. Different thickness of rubber can be supplied to cope with tubes down to 25mm diameter.
