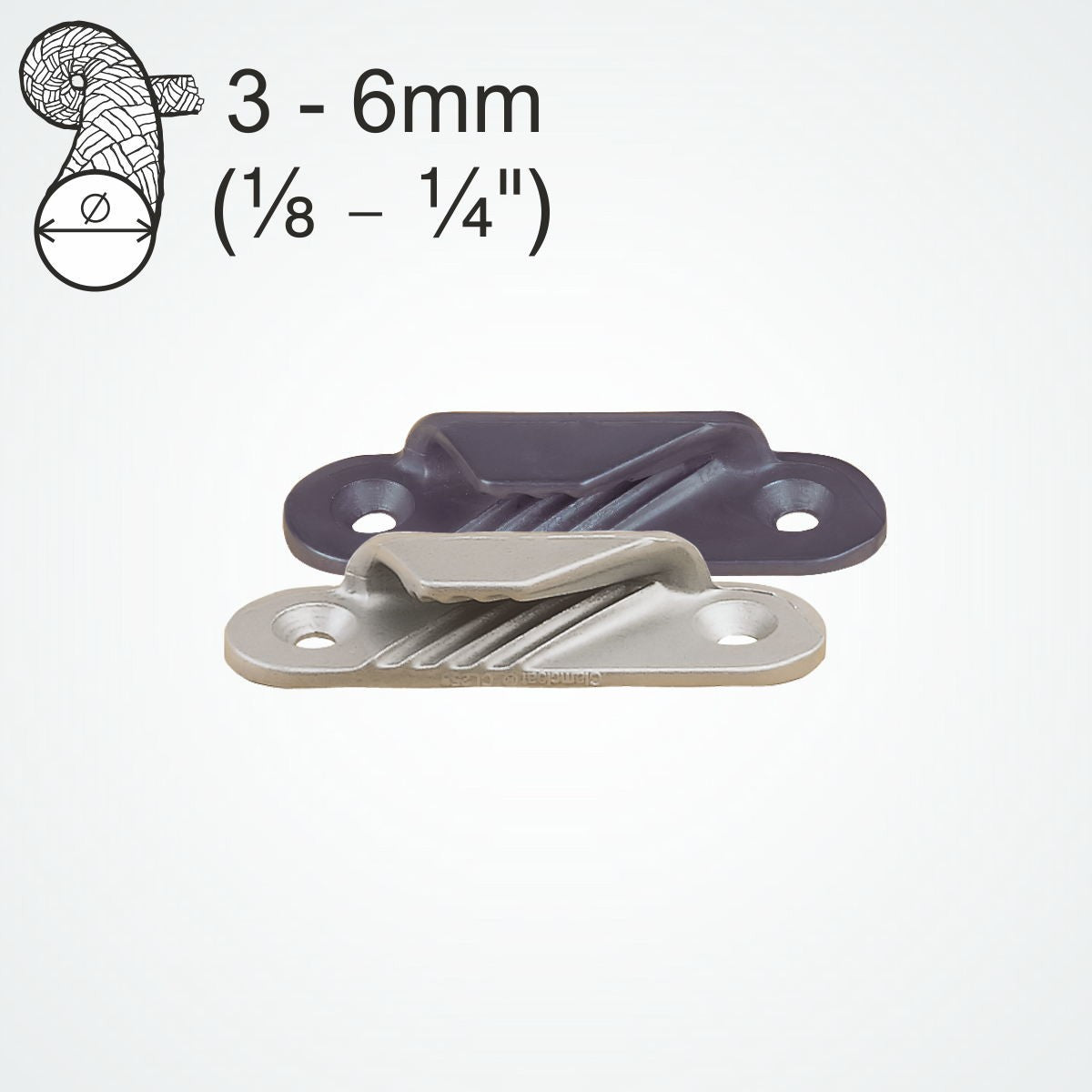

Clamcleat CL258 Racing Fine Line (Starboard)

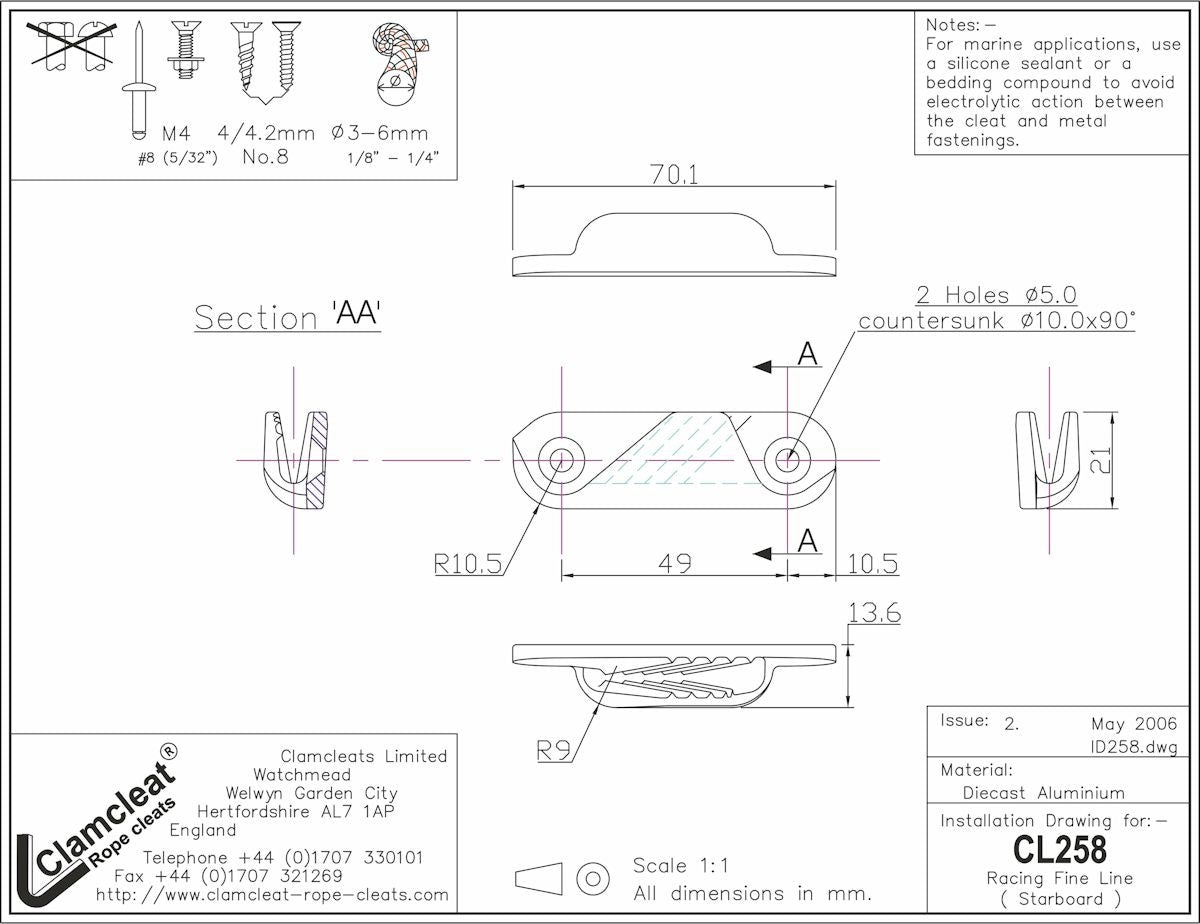

Technical Details		Metric	Imperial
Rope Diameter		3 - 6mm	1/8 - 1/4"
Material		Aluminium	Aluminium
Hole Centres		49mm	1 15/16"
Length		70mm	2 3/4"
Width		21mm	13/16"
Height		14mm	9/16"
Bolt Size		M4	#8-32. 5/32"
Screw Size		4.2mm	No 8
Weight		19gms	0.7oz

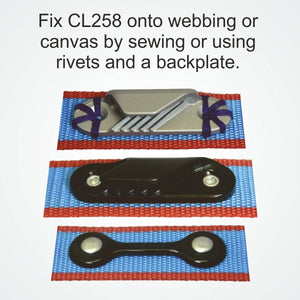

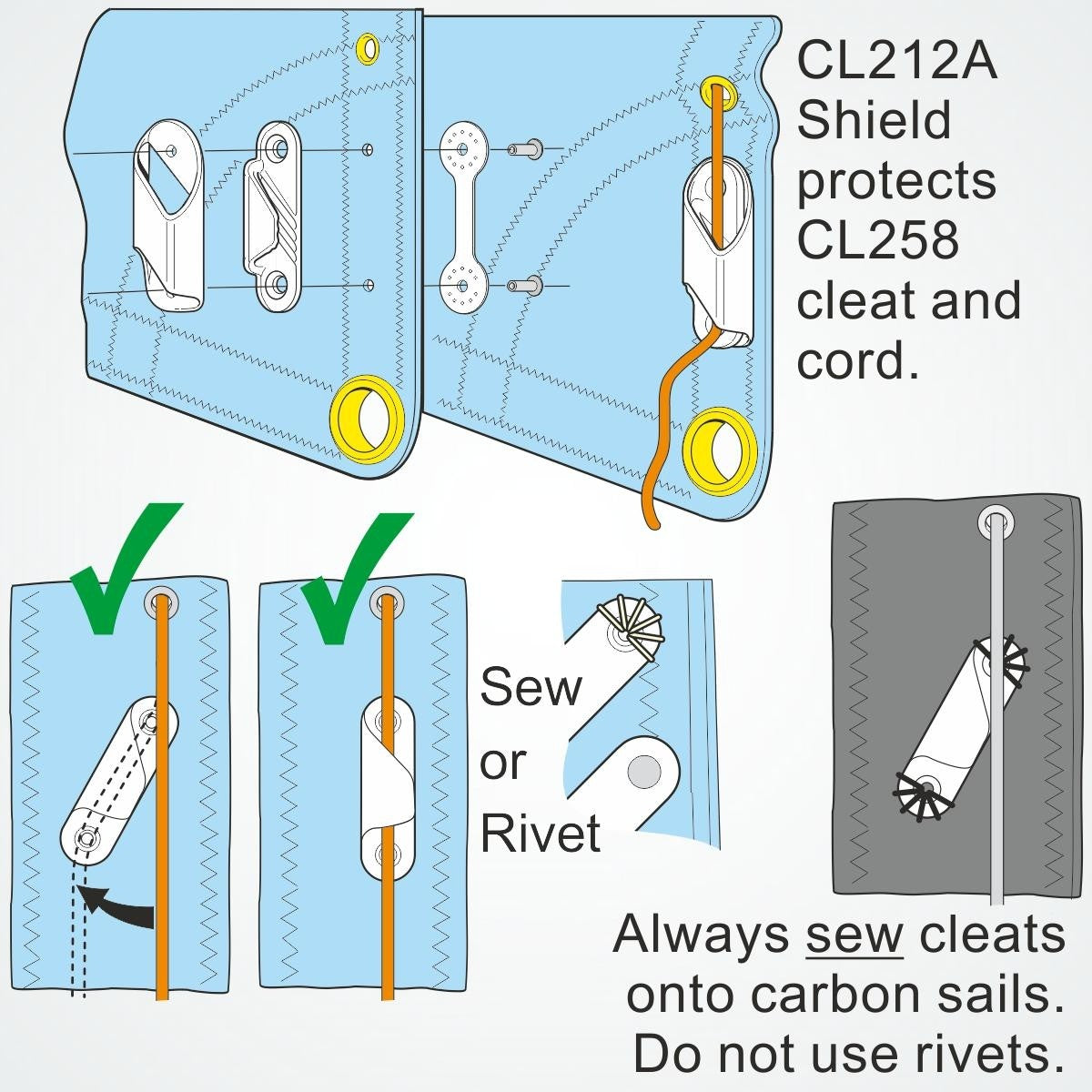

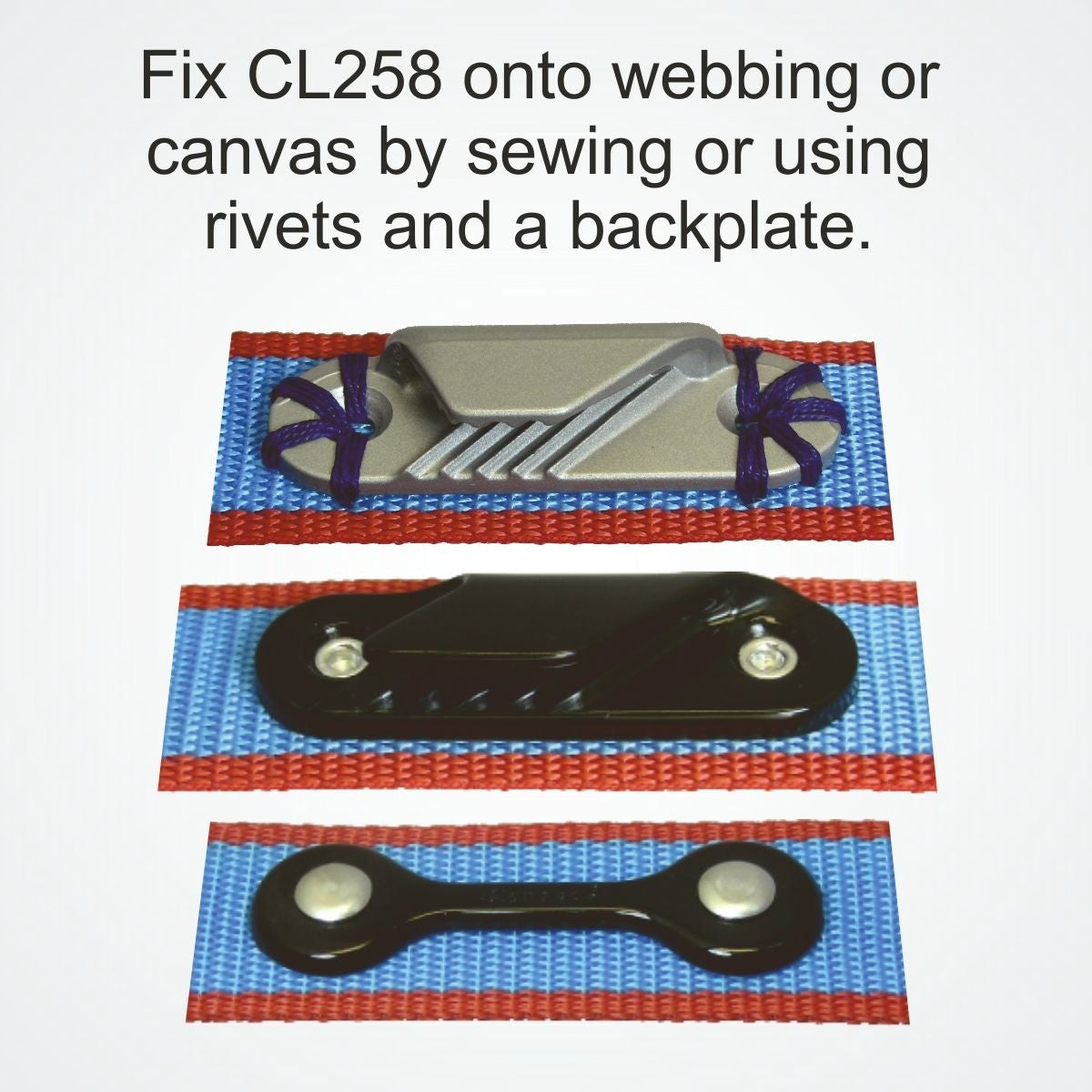

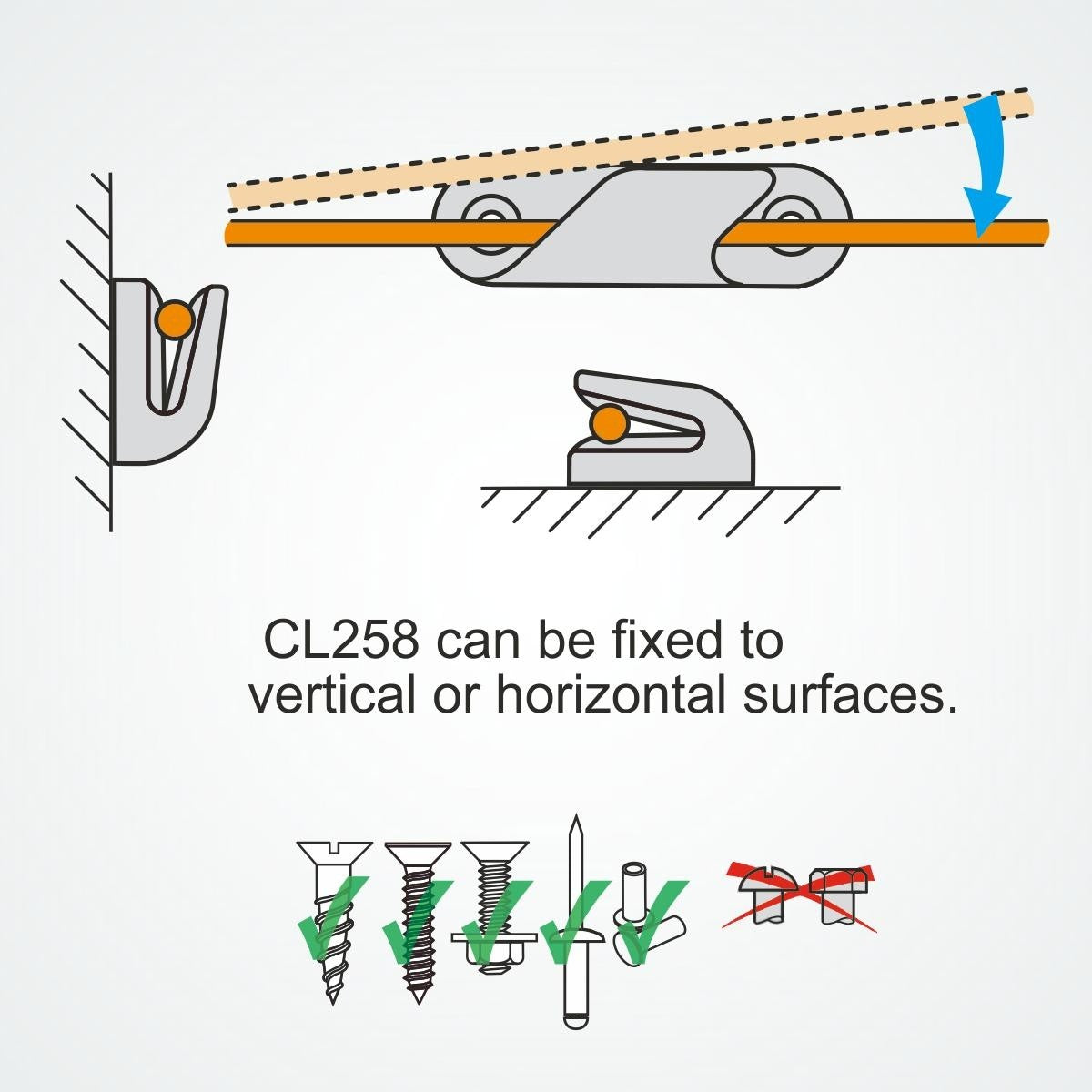

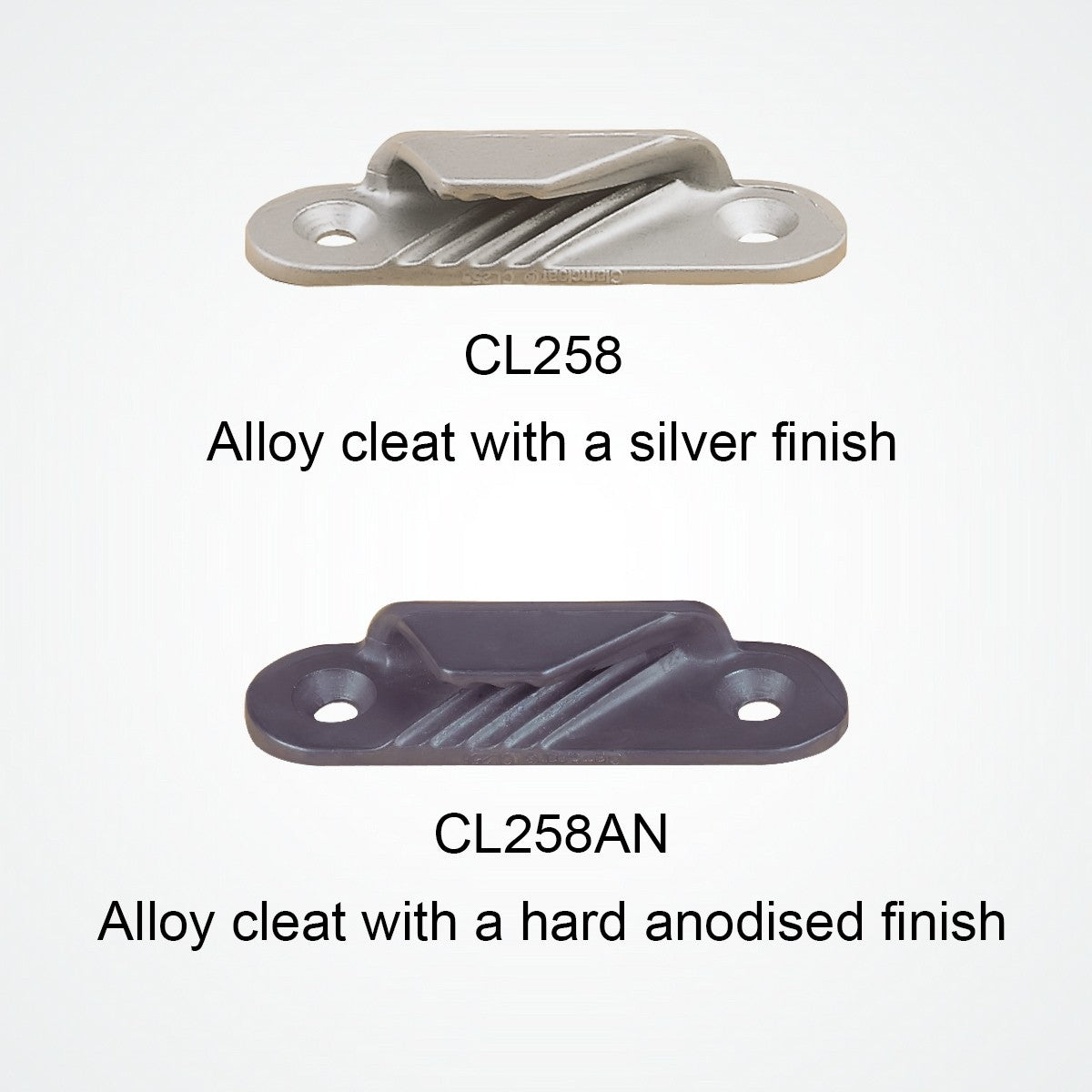

The tooth design of the Clamcleat® CL258 Racing Fine Line (Starboard) allows a quick, positive lock that is easy to release. Add this to its' low profile and ability to hold high loads, makes it an ideal cleat for adjusting leech lines on larger sails. Use a backplate when riveting a cleat onto fabric to prevent the rivet pulling through. It can be mounted in two positions and can be sewn or riveted to the sail. The CL258 is usually ftted to the Port side of a sail, when used for tensioning leech lines. See the fitting diagrams above. Also used for industrial blinds and as a low profile deck cleat on dinghies. Manufactured from aluminium for light weight and durable performance the CL258 is available in two finishes: 1. CL258 has a silver stove enamel finish for a cost effective, high quality coating. 2. CL258AN has a hard anodised finish to give the ultimate hard wearing surface. (Note that alloy cleats should be sewn onto carbon fibre sails, to avoid corrosion.) The nylon version of this cleat is the the CL212. For the other side of a sail please look at the CL259. This cleat is also used to secure lines on ladders used by engineers working up telegraph poles.
