- Recommended applications – 20- 30′ Boats
- Breaking Strength – 5,000 lb
- Work Load – 2,500 lb
- Heat treated 17-4 PH stainless steel

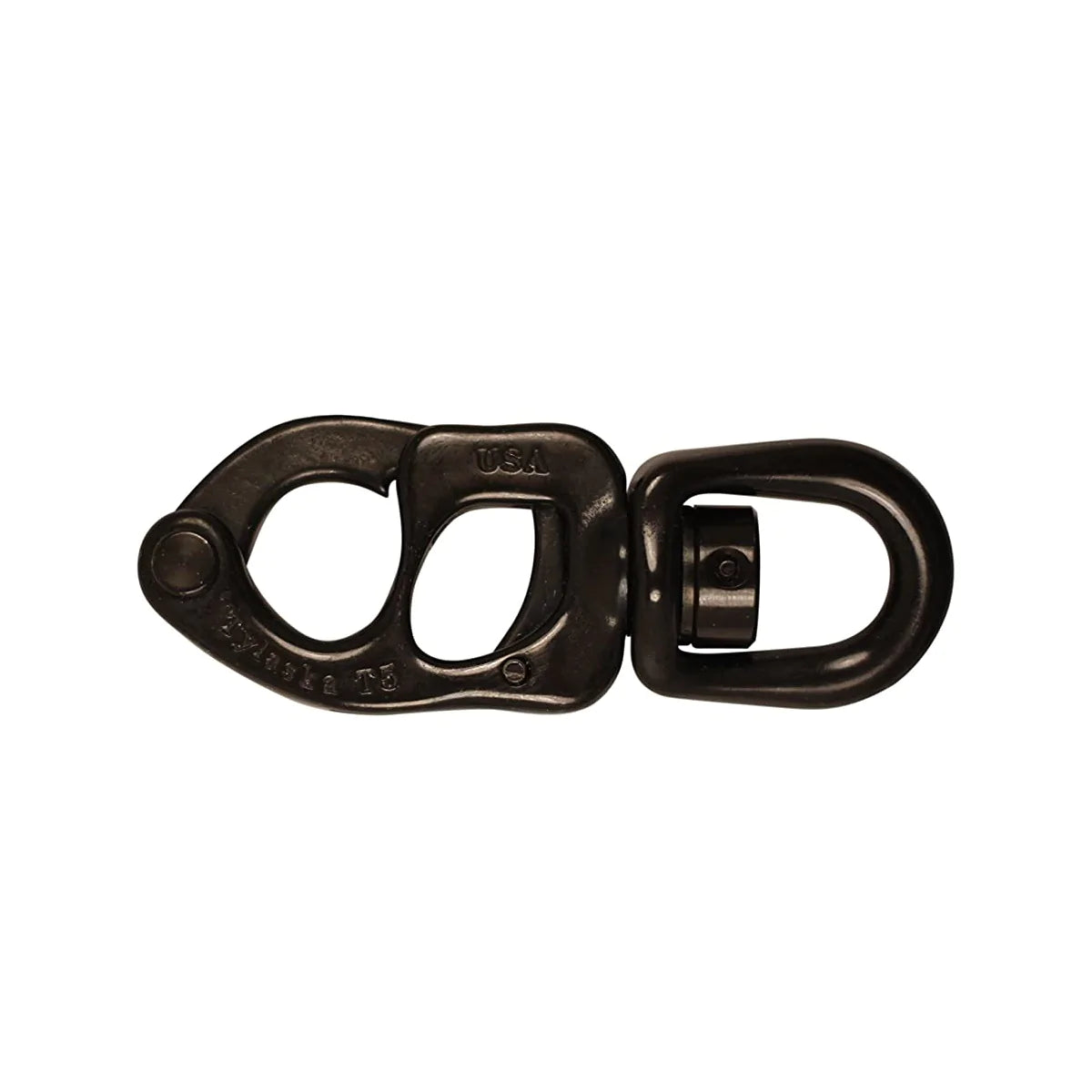

MFG #:TY1005-S-BL

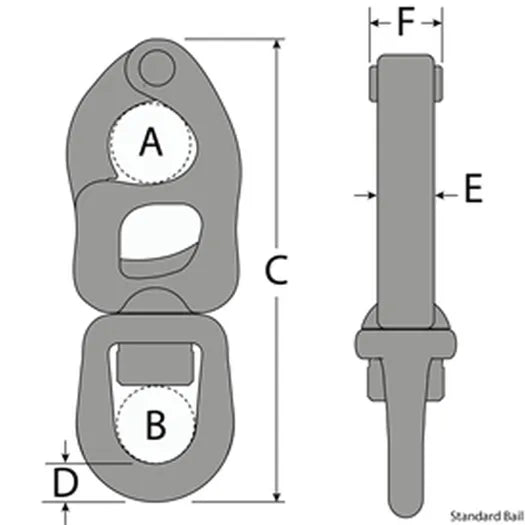

| Product No. | Bail Type | A (in. [mm]) | B (in. [mm]) | C (in. [mm]) | D (in. [mm]) | E (in. [mm]) | F (in. [mm]) | G (in. [mm]) | Weight (oz [g]) | Working Load Limit (lb [kg]) | Breaking Strength (lb [kg]) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TY1005-S | Standard | 0.53 [13.5] | .50 [12.7] | 3.02 [76.7] | .23 [5.8] | .30 [7.6] | .44 [11.1] | N/A | 2.2 [62] | 2,500 [1,130] | 5,000 [2,270] |
