| Item Attributes | |
|---|---|
| Part No | TY1412 |
| Vendor Item No | |
| Unit of Measure | EACH |
| Sales Order Multiples | 1 |

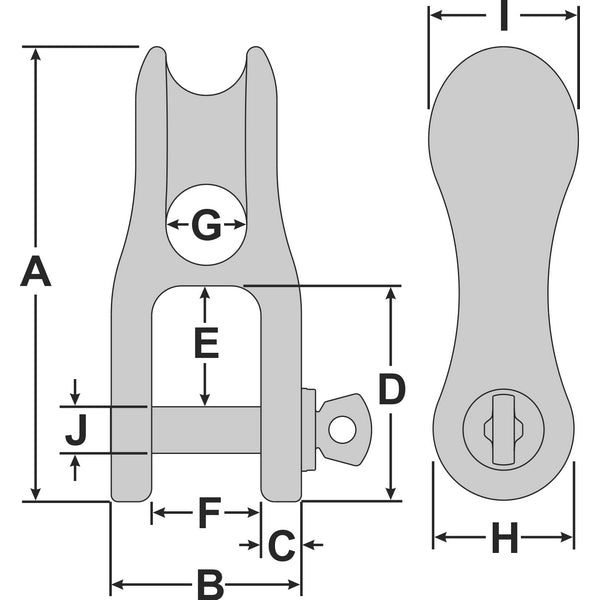

| A | 95 MM |
| B | 38.1 MM |
| Breaking Load | 5440 KG |
| C | 7.9 MM |
| D | 48.3 MM |
| E | 29 MM |
| F | 22.4 MM |
| G | 15.9 MM |
| H | 28.4 MM |
| I | 30.7 MM |
| J | 9.7 MM |
| Line Size | 11-14 MM |
| Safe Working Load | 2720 KG |
| Weight | 132 G |

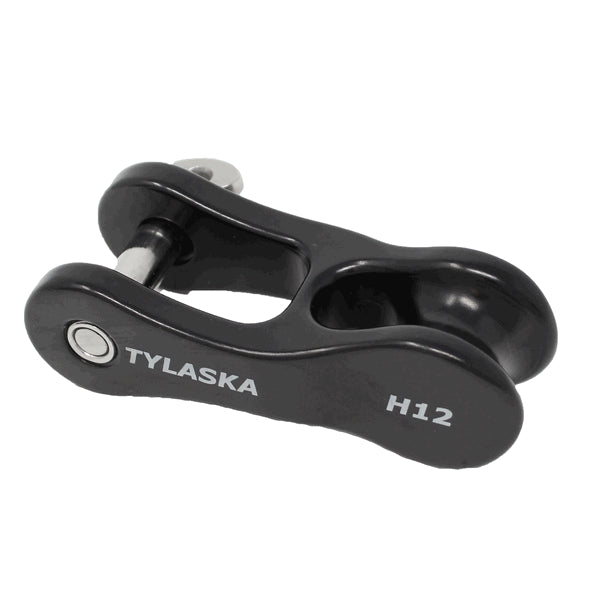

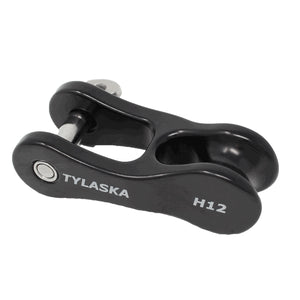

Tylaska's halyard shackles have the highest strength-to-weight ratio of any existing halyard shackle on the market. A captive 17-4PH stainless steel pin makes for trouble-free operation. The all-metal machined line thimble allows for use as a 2-1 purchase without the wear or melting that occurs with plastic molded thimbles. Lines can also be permanently spliced for a fixed halyard.
