- Recommended Applications – 22-36′ Boats
- Breaking Strength – 8,000 lb
- Work Load – 4,000 lb
- Heat treated 17-4 PH stainless steel

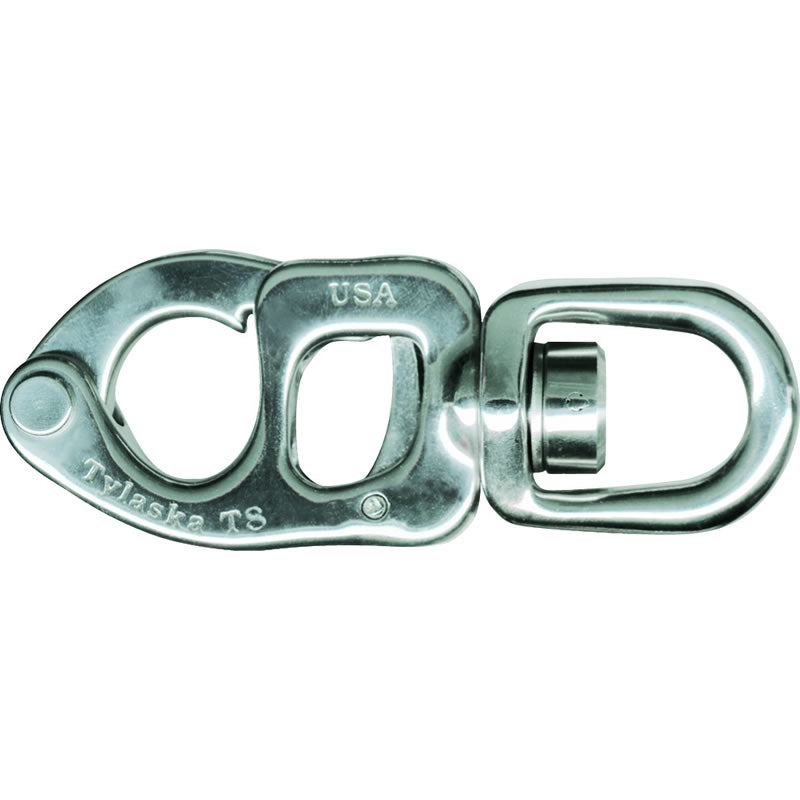

Tylaska T8 Snap Shackles are perfect for applications requiring immense strength and low weight. They have a breaking strength of 8,000 pounds and weigh only 3.5 ounces in the standard bail configuration. Ideal for the 24 to 36 foot sailboat. The T8 standard and large bail snap shackles are available with a decorative bronze PVD or black oxide finish. The T8 is intended for static load applications only and is NOT approved for lifting applications.
MFG #:TY1008-S
| Safe Working Load - Boat Length22 - 36 ft
| SWL4,000 lb

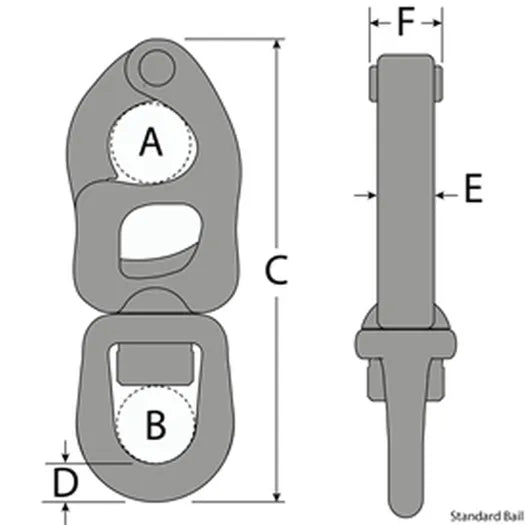

D
0.28"
A
0.63"
B
0.58"
E
0.38"
SWL
4,000 lb
Weight
3.6 oz (99 gm)
BL
8,000 lb(3636 kg)
Typical Boat
22 - 36 ft
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
F
0.54"
Model
T8-S
C (Length)
3.49"
Type
Standard Bail Trigger Release Snap Shackle
