Part No. 2124

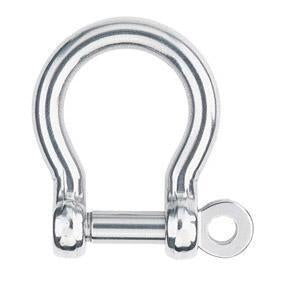

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.
Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Shackle pin Ø (mm)10 mm
Shackle pin Ø (in)13/32 in
Weight (g)138.5 g
Weight (oz)4.88 oz
Maximum working load (kg)2210 kg
Maximum working load (lb)4870 lb
Breaking load (kg)4420 kg
Breaking load (lb)9740 lb
