Part No. 2103

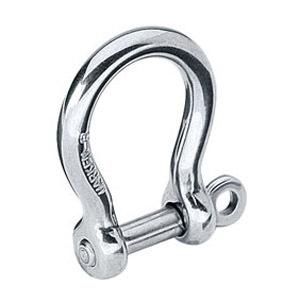

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.
Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Shackle pin Ø (mm)5 mm
Shackle pin Ø (in)3/16 in
Weight (g)18 g
Weight (oz)0.64 oz
Maximum working load (kg)540 kg
Maximum working load (lb)1190 lb
Breaking load (kg)1080 kg
Breaking load (lb)2380 lb
