Part No. 6063

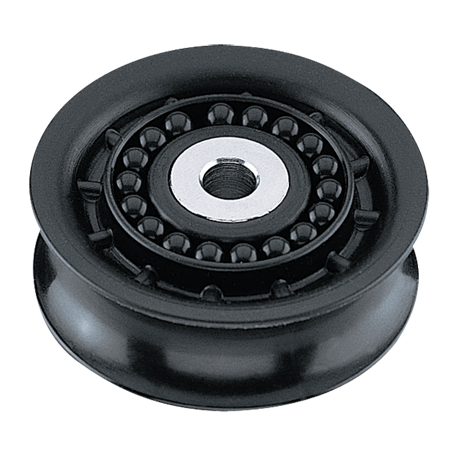

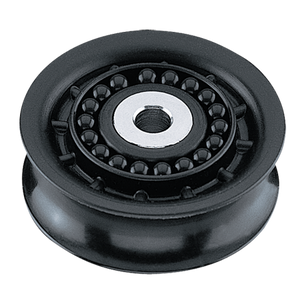

Self-contained sheaves are designed for sailors to use in custom applications. Use Cruising ESP sheaves to handle high static loads from halyards and reef lines. Sheaves are carbon-black Delrin® for UV protection and turn on stainless steel spacers.
Delrin® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Sheave Ø (mm)57 mm
Sheave Ø (in)2 1/4 in
Width (mm)21 mm
Width (in)13/16 in
Weight (g)46 g
Weight (oz)1.6 oz
Center pin Ø (mm)10 mm
Center pin Ø (in)3/8 in
Maximum line Ø (mm)16 mm
Maximum line Ø (in)5/8 in
Maximum working load (kg)1134 kg
Maximum working load (lb)2500 lb
