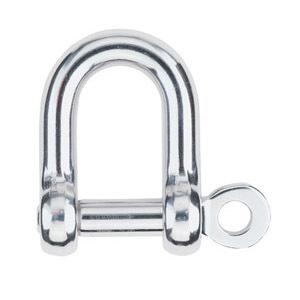

Part No. 2108
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.
"D" shackles are the most common type of shackle. They are best suited for aligned attachment points.
Shackle pin Ø (mm)6 mm
Shackle pin Ø (in)1/4 in
Weight (g)25 g
Weight (oz)0.88 oz
Maximum working load (kg)750 kg
Maximum working load (lb)1650 lb
Breaking load (kg)1500 kg
Breaking load (lb)3300 lb
