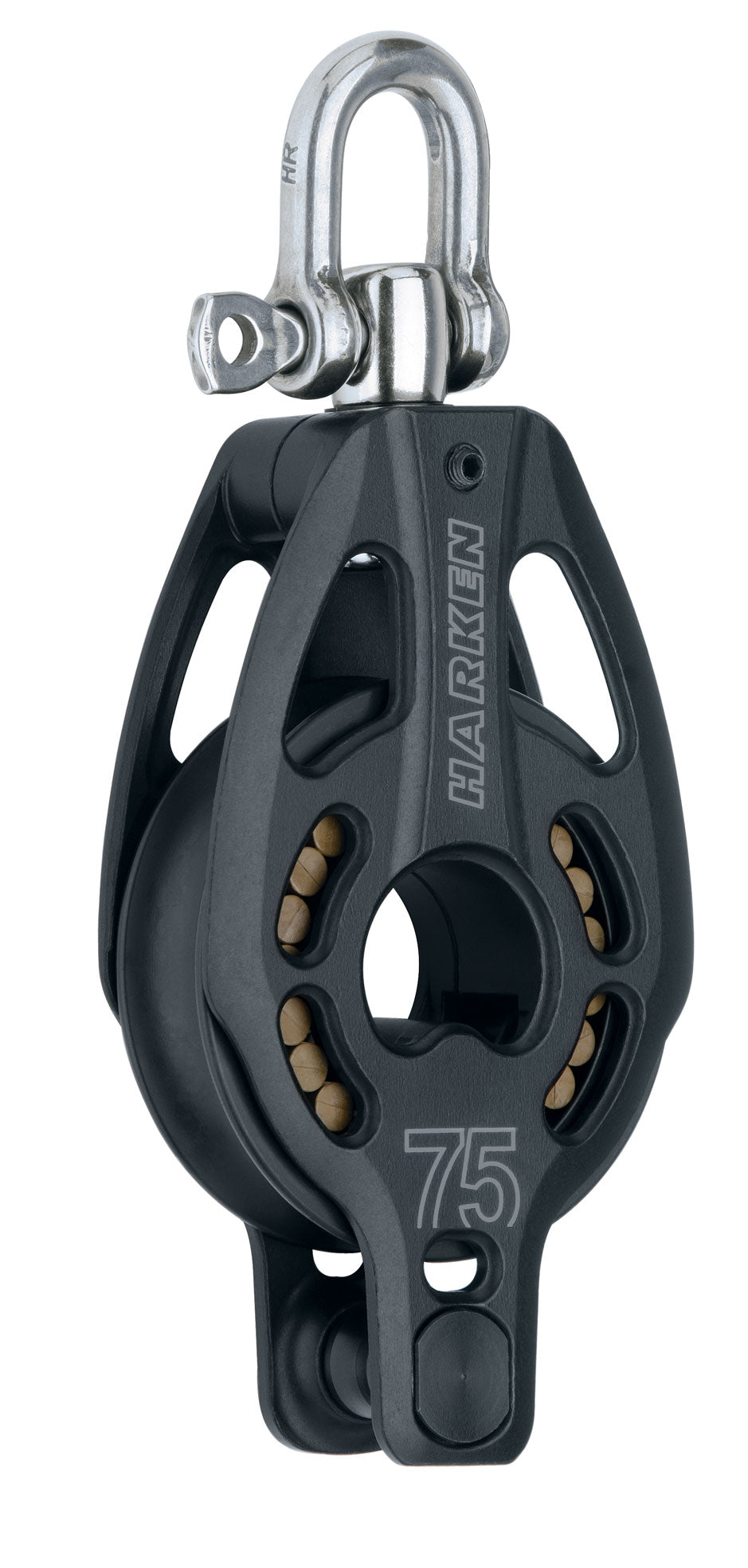

Part No. 3232
Black Magic Air blocks are a top favorite of Big Boat performance racers and cruisers. These lightweight, free-running, powerful performers are used for sail controls that see lots of action: mainsheet, runner, halyard, and spinnaker systems. A center cage keeps Torlon® roller bearings separated and parallel to reduce friction. Shackle blocks lock in two directions or swivel to keep line from twisting.
Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.
Sheave Ø (mm)75 mm
Sheave Ø (in)2 15/16 in
Length (mm)157 mm
Length (in)6 3/16 in
Weight (g)363 g
Weight (oz)12.8 oz
Shackle pin Ø (mm)8 mm
Shackle pin Ø (in)5/16 in
Maximum line Ø (mm)14 mm
Maximum line Ø (in)9/16 in
Maximum working load (kg)2268 kg
Maximum working load (lb)5000 lb
Breaking load (kg)4536 kg
Breaking load (lb)10000 lb
