Part No. 2694

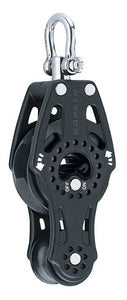

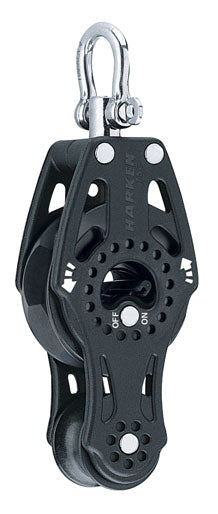

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.
Sheave Ø (mm)75 mm
Sheave Ø (in)2 15/16 in
Length (mm)157 mm
Length (in)6 3/16 in
Weight (g)270 g
Weight (oz)9.5 oz
Shackle pin Ø (mm)6 mm
Shackle pin Ø (in)1/4 in
Maximum line Ø (mm)12 mm
Maximum line Ø (in)1/2 in
Maximum working load (kg)550 kg
Maximum working load (lb)1212 lb
Breaking load (kg)1650 kg
Breaking load (lb)3637 lb
Holding power15:1
