Part No. 2117

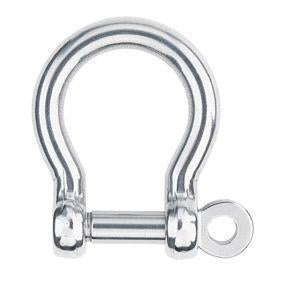

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.
Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Shackle pin Ø (mm)8 mm
Shackle pin Ø (in)5/16 in
Weight (g)70.5 g
Weight (oz)2.48 oz
Maximum working load (kg)1380 kg
Maximum working load (lb)3040 lb
Breaking load (kg)2760 kg
Breaking load (lb)6080 lb
