Part No. 2115

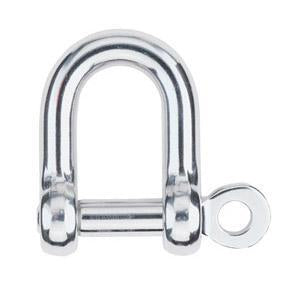

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. "D" shackles are the most common type of shackle. They are best suited for aligned attachment points.
Shackle pin Ø (mm)8 mm
Shackle pin Ø (in)5/16 in
Weight (g)59 g
Weight (oz)2.08 oz
Maximum working load (kg)1380 kg
Maximum working load (lb)3040 lb
Breaking load (kg)2760 kg
Breaking load (lb)6080 lb
