Part No. HSB534

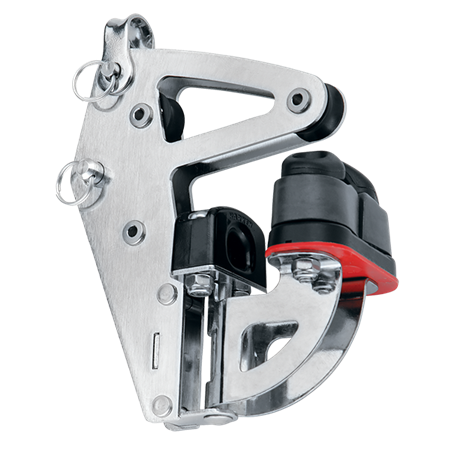

The dinghy vang features 16 mm sheaves with stainless ball bearing for high loads. The assembly includes a 468 Micro Cam-Matic® cleat that allows precise trimming. It’s easy to cleat because it pivots for a fair lead. The unit connects to a mast bracket with a 1/4" pin. The system provides a 12:1 purchase when cascaded with 4:1 blocks. The vang lower unit is available by itself or as part of a kit.
Weight (g)229 g
Weight (oz)8.1 oz
Maximum sail area (m²)11.6 m²
Maximum sail area (ft²)125 ft²
Maximum working load (kg)181 kg
Maximum working load (lb)400 lb
Breaking load (kg)454 kg
Breaking load (lb)1000 lb
