Part No. 2145
Sheave Ø (mm) 57 mm
Sheave Ø (in) 2 1/4 in
Maximum line Ø (mm) 10 mm
Maximum line Ø (in) 3/8 in
Maximum working load (kg) 136 kg
Maximum working load (lb) 300 lb

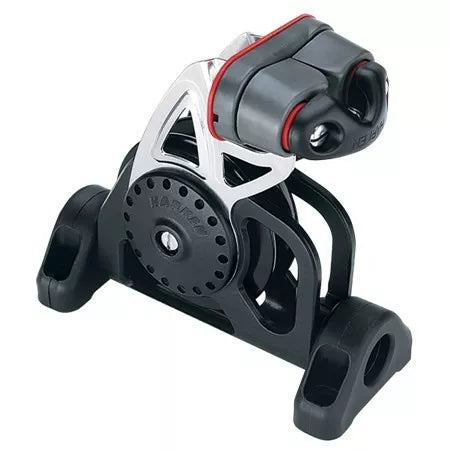

Small Boat Flip-Flop blocks pivot around the line axis to keep the line close to the deck. Hinged construction allows for various lead angles. Ratchamatic block versions roll freely in both directions under low loads and automatically engage a ratchet mechanism as loads increase, giving sailors a holding power of up to 15:1. The ratchet engagement can be adjusted to a higher or lower load depending on the sailor’s strength, sailing style and system usage.
| Sheave Ø (mm) | 57 mm |
| Sheave Ø (in) | 2 1/4 in |
| Length (mm) | 110 mm |
| Length (in) | 4 5/16 in |
| Width (mm) | 66 mm |
| Width (in) | 2 5/8 in |
| Height (mm) | 106 mm |
| Height (in) | 4 3/16 in |
| Weight (g) | 329 g |
| Weight (oz) | 12 oz |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Maximum working load (kg) | 136 kg |
| Maximum working load (lb) | 300 lb |
| Breaking load (lb) | 600 lb |
| Breaking load (kg) | 272 kg |
