Part No. 9052
Maximum line Ø (mm) 6 mm
Maximum line Ø (in) 1/4 in
Maximum working load (kg) 91 kg
Maximum working load (lb) 200 lb
Minimum line Ø (mm) 3 mm
Minimum line Ø (in) 1/8 in

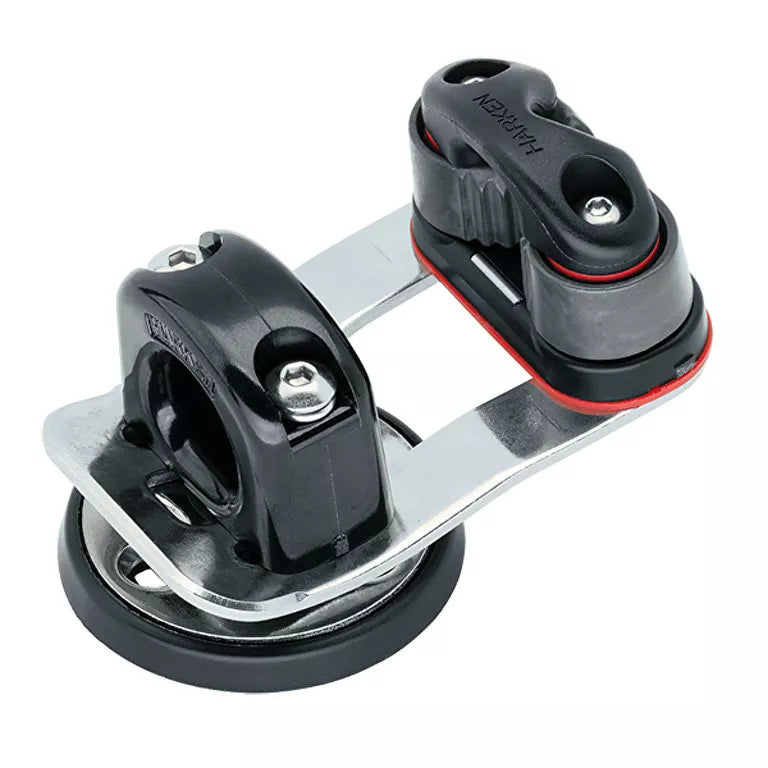

The 9052 adjustable cam swivel base with 468 Micro Cam-Matic cleat provides precise cleating. The cleating angle adjusts infinitely in a 5-17 degree range up and down for optimal line lead. The 16 mm sheaves feature low-friction stainless steel ball bearings to handle high loads, ideal for controls where cleating angles change dramatically.
| Height (mm) | 60 mm |
| Height (in) | 2 3/8 in |
| Weight (g) | 160 g |
| Weight (oz) | 5.6 oz |
| Maximum line Ø (mm) | 6 mm |
| Maximum line Ø (in) | 1/4 in |
| Maximum working load (kg) | 91 kg |
| Maximum working load (lb) | 200 lb |
| Minimum line Ø (mm) | 3 mm |
| Minimum line Ø (in) | 1/8 in |
| Fastener spacing (mm) | 26 mm |
| Fastener spacing (in) | 1 1/32 in |
