Part No. 491

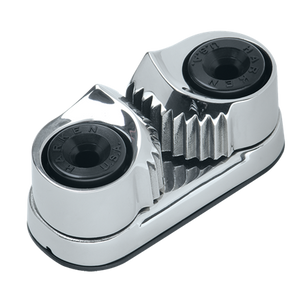

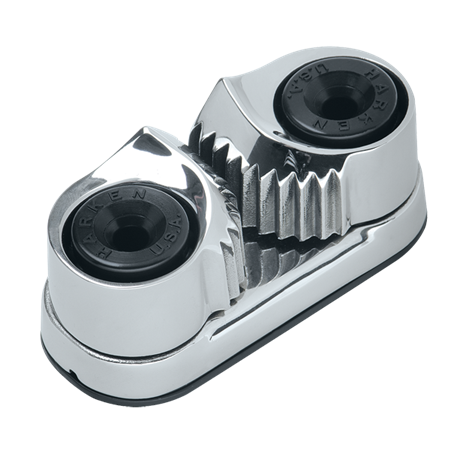

Harken ball bearing cam cleats hold lines securely and release instantly under load. The stainless steel Cam-Matic cleat is made of high-wear, investment–cast stainless that is mirror polished to a high luster.
Height (mm)37 mm
Height (in)1 7/16 in
Length (mm)85 mm
Length (in)3 3/8 in
Width (mm)38 mm
Width (in)1 1/2 in
Weight (g)380 g
Weight (oz)13.4 oz
Minimum line Ø (mm)6 mm
Minimum line Ø (in)1/4 in
Maximum line Ø (mm)16 mm
Maximum line Ø (in)5/8 in
Fastener spacing (mm)52 mm
Fastener spacing (in)2 1/16 in
Fasteners (mm)6 FH mm
Fasteners (in)1/4 FH in
Maximum working load (kg)227 kg
Maximum working load (lb)500 lb
Breaking load (kg)454 kg
Breaking load (lb)1000 lb
PawlsStainless steel
