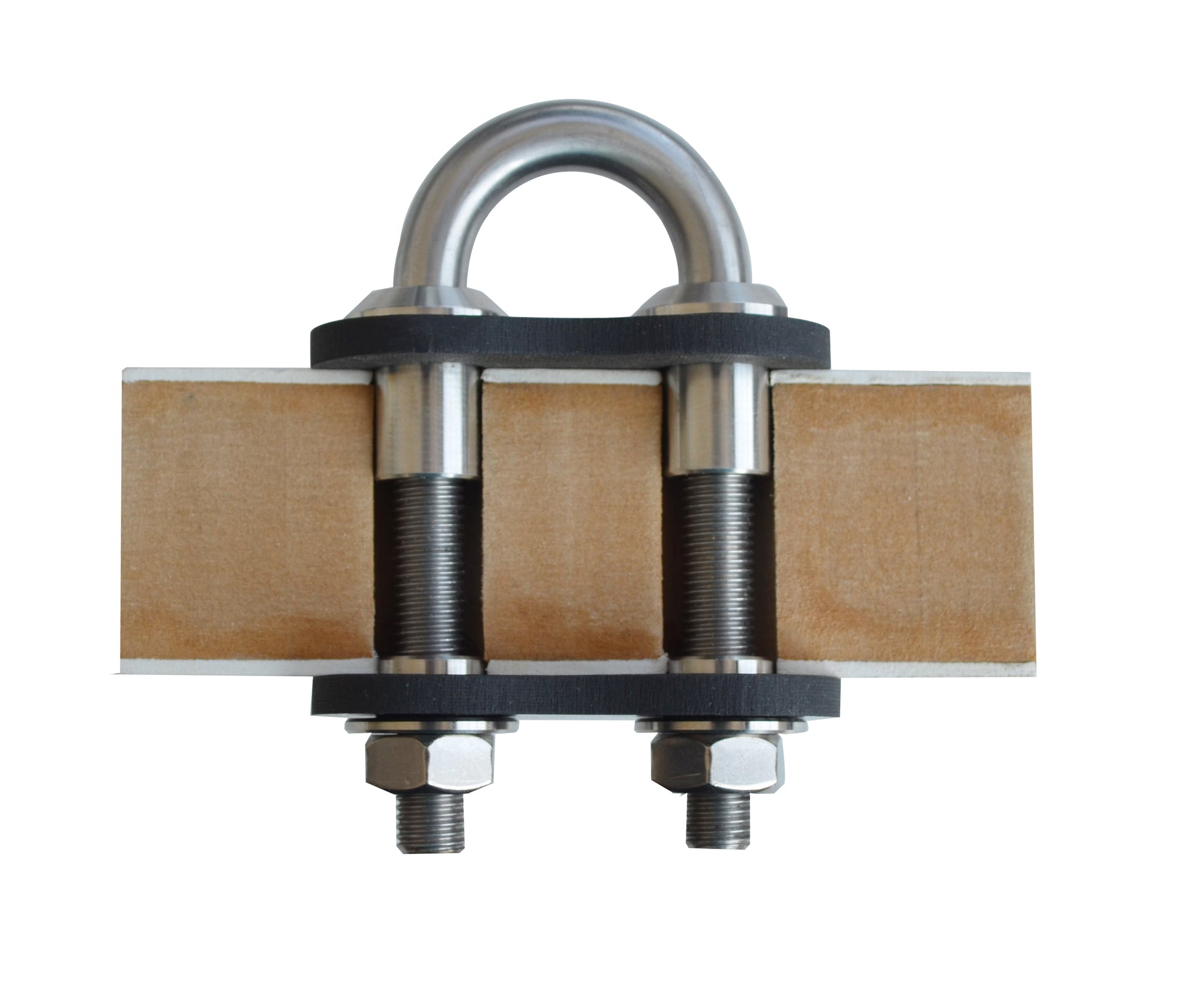

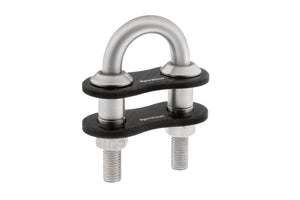

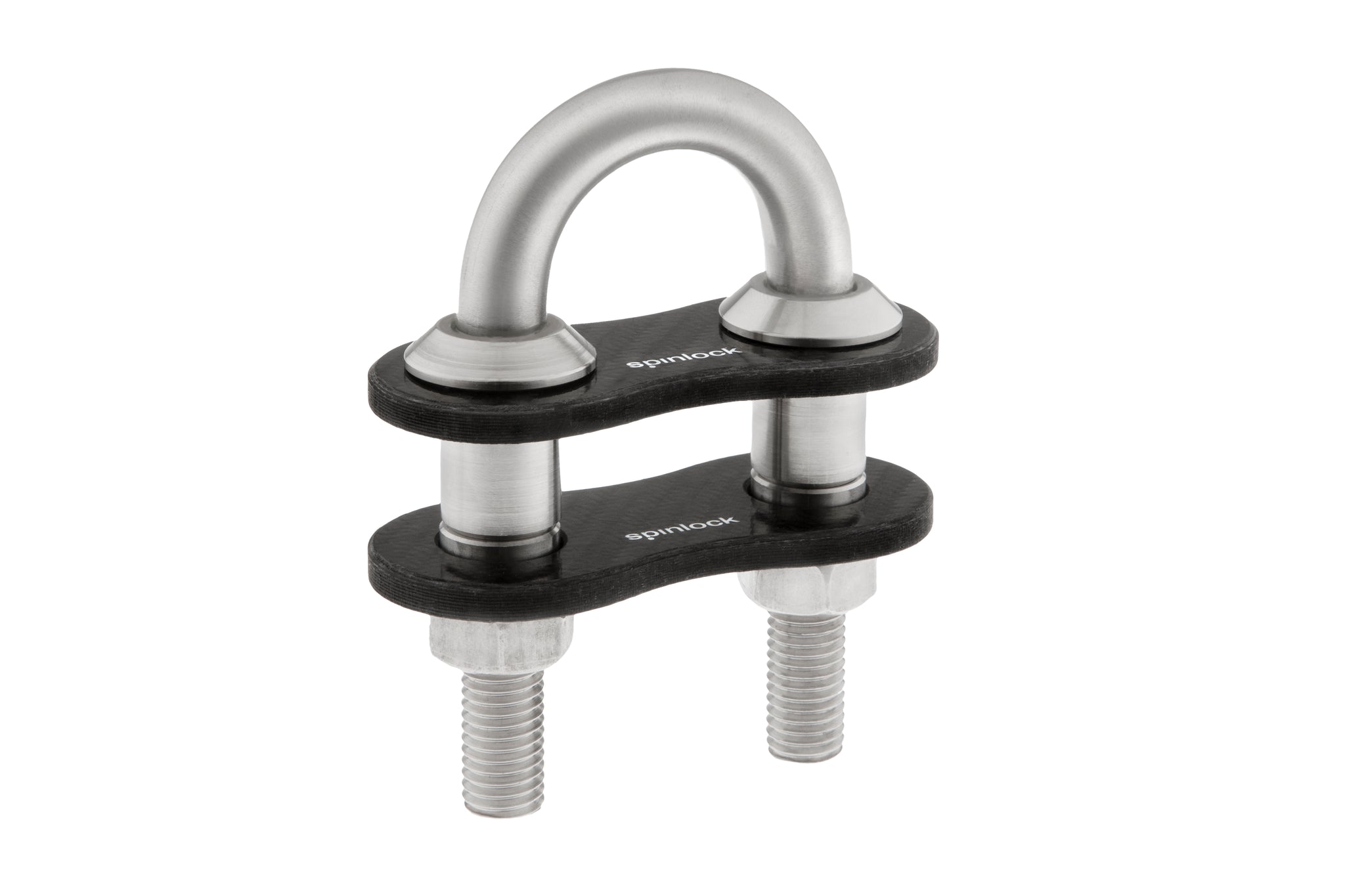

High strength and low weight strong point with excellent strength to weight ratio.
- Carbon deck plates
- Carbon backing plates
- High quality 17-4PH stainless steel
- Excellent strength to weight ratio
- Increased through laminate bearing surfaces to minimise tearing
- Significantly reduced weight to previous padeye range
- No dissimilar material issues
- Improved shock loading resistance
- Compact foot print and the ability to ‘nest’ together
- Easily sealed
Model SWL Vertical (kg) SWL 45 (kg) SWL Horizontal (kg)
PD/6C 2150 1290 1290
PD/8C 4000 2400 2400
PD/10C 7600 5250 5250
