***No delivery service. Only pick up in Ship Shop.
Comparable with 1.5HP petrol outboard (propulsive power).
Performance and Range*
| Half Power 250W |
Full Power 500W |
Sport Mode 750W |
|
|
Speed (kph / mph) |
6.0 / 3.7 | 7.5 / 4.7 | 8.3 / 5.2 |
|
Max Run Time (hh:mm) |
01 : 30 | 00 : 45 | ** |
|
Range (km / miles) |
9.0 / 5.6 | 5.6 / 3.5 | / |
* The data above is for a single person driving an 8ft aluminium dinghy (total weight 117kg), in calm conditions. Range and run time may vary with different boat or load, wind and waves, etc
** Sport Mode can last up to 1 minute subject to battery SOC and temperature.

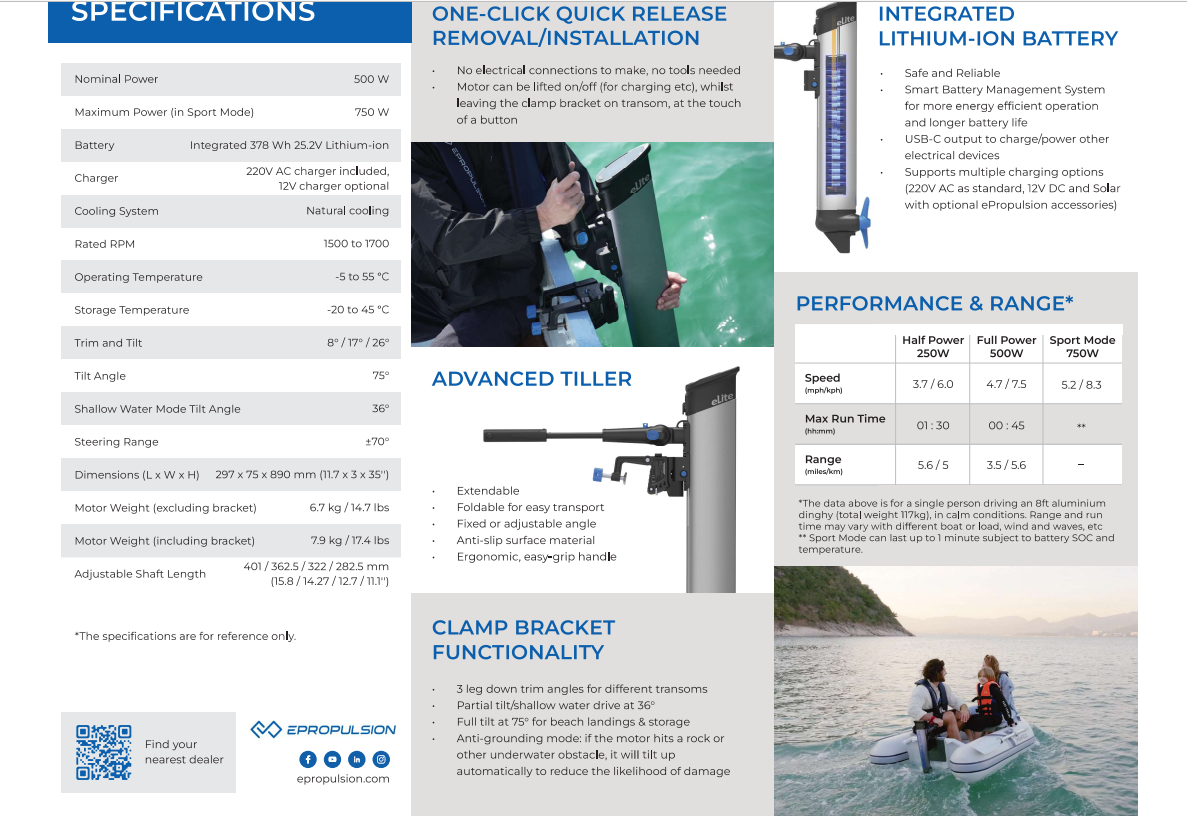

Specs
| Nominal Power | 500 W | |
| Maximum Power (in Sport mode) | 750 W | |

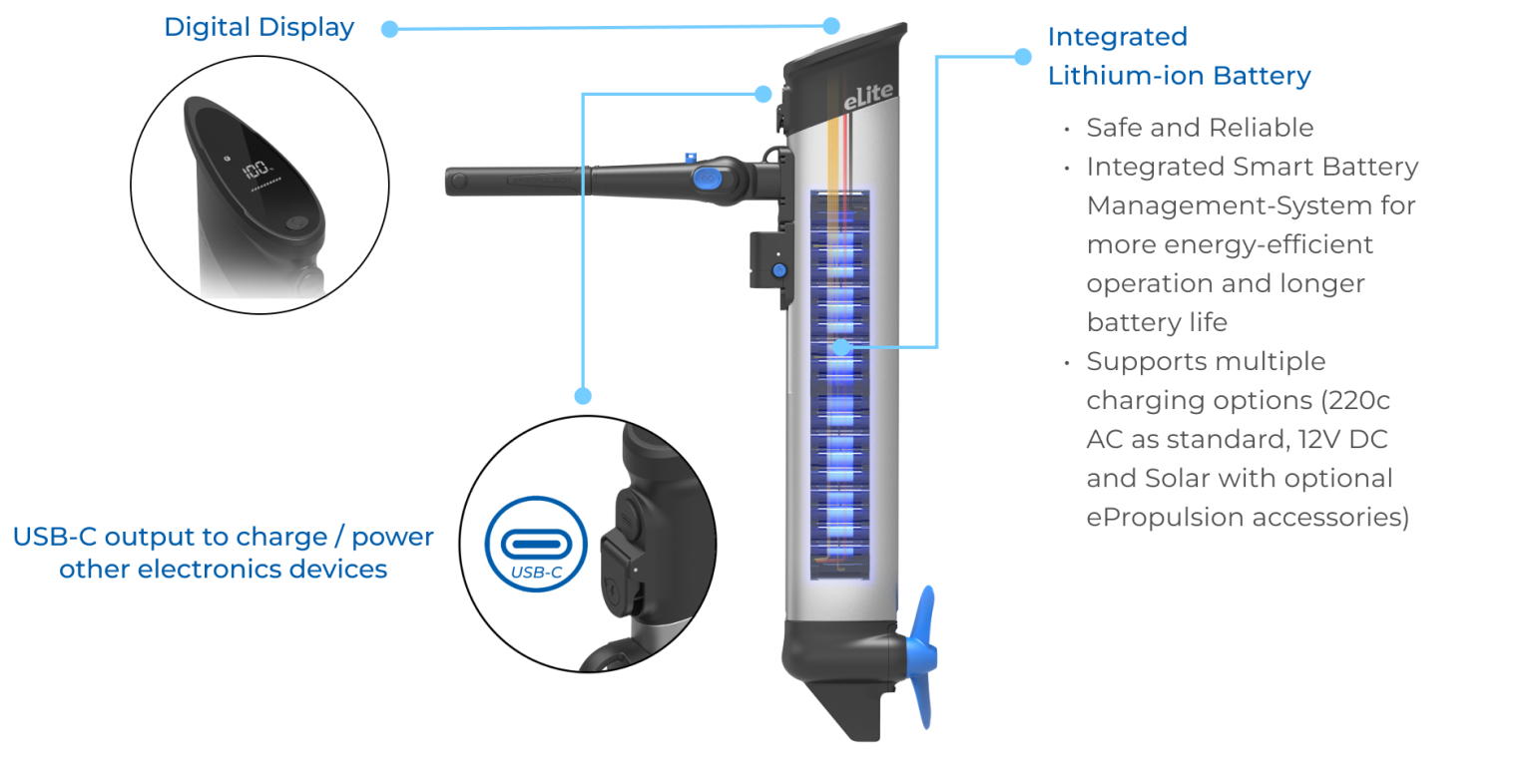

| Battery | Integrated 378 Wh 25.2V Lithium-ion | |
| Charger | 100 to 240V AC charger included, 12V charger optional | |
| Cooling System | Natural cooling | |
| Rated RPM | 1500 to 1700 | |
| Operating Temperature | -5 to 55 °C | |
| Storage Temperature | -20 to 45 °C | |
| Trim and Tilt | 8° / 17° / 26° | |

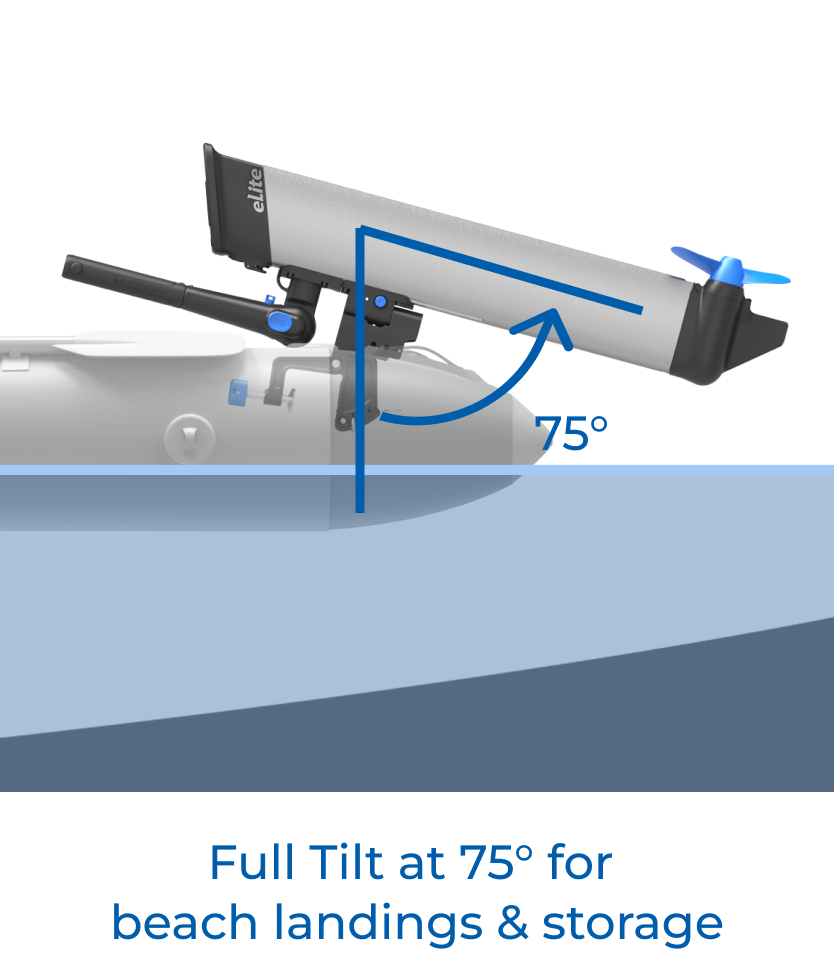

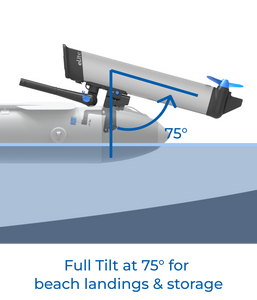

| Tilt Angle | 75° | |

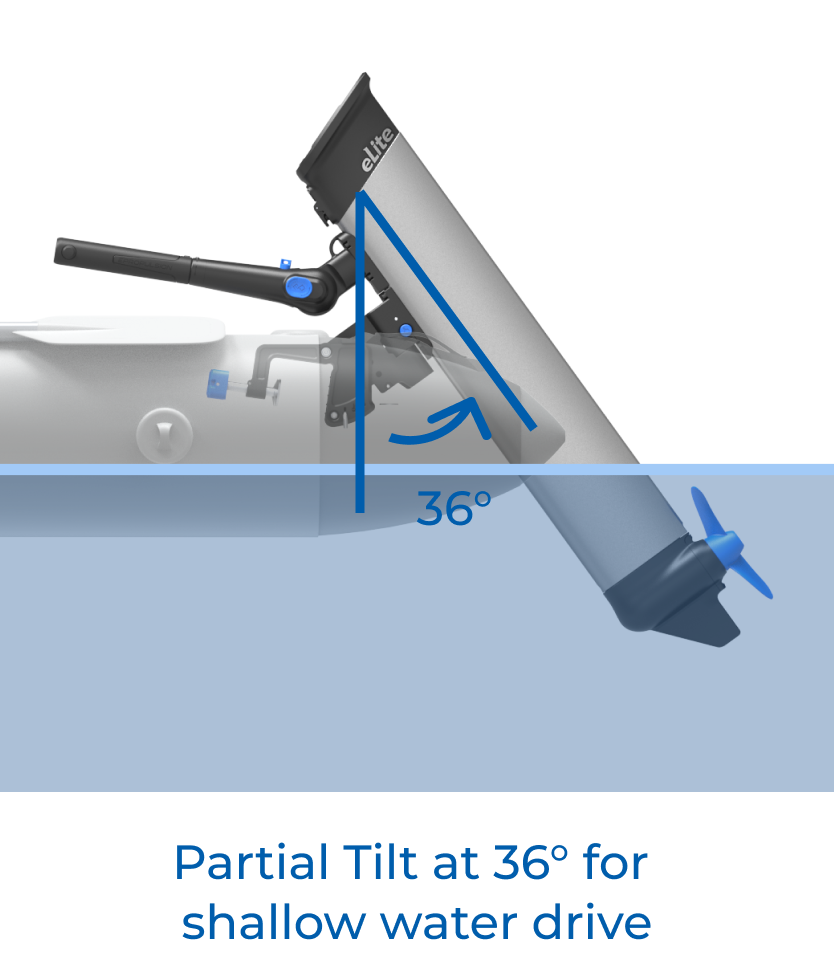

| Shallow Water Mode Tilt Angle | 36° | |
| Steering Angle | ±70° | |
| Dimensions (L x W x H) | 297 x 75 x 890 mm (11.7 x 3 x 35”) |
|
| Motor Weight (excluding bracket) | 6.7 kg / 14.7 lbs | |
| Motor Weight (including bracket) | 7.9 kg / 17.4 lbs | |
| Adjustable Shaft Length | 401 / 362.5 / 322 / 282.5 mm (15.8 / 14.27 / 12.7 / 11.1”) |
|
