Sheave Ø (mm) 57 mm
Sheave Ø (in) 2 1/4 in
Maximum line Ø (mm) 10 mm
Maximum line Ø (in) 3/8 in
Maximum working load (kg) 359 kg
Maximum working load (lb) 792 lb

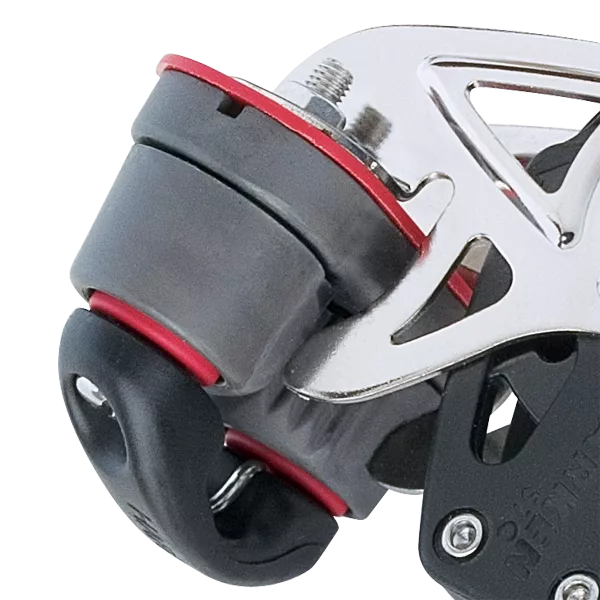

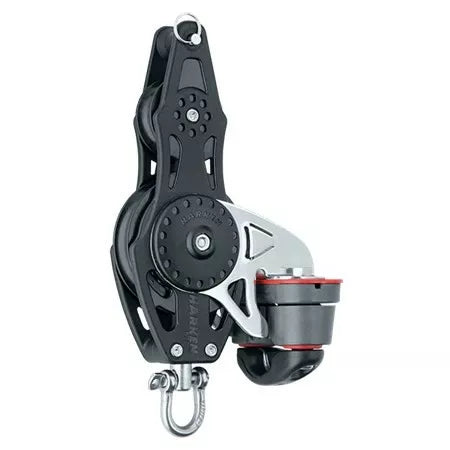

Low-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to our popular Harken Big Boat blocks, these small, compact blocks have very high working loads for safe, easy trimming.
Specifications
Sheave Ø (mm) 57 mm
Sheave Ø (in) 2 1/4 in
Length (mm) 175 mm
Length (in) 6 7/8 in
Weight (g) 295 g
Weight (oz) 10.4 oz
Maximum line Ø (mm) 10 mm
Maximum line Ø (in) 3/8 in
Maximum working load (kg) 359 kg
Maximum working load (lb) 792 lb
Breaking load (lb) 2380 lb
Breaking load (kg) 1080 kg
Shackle pin Ø (mm) 5 mm
Shackle pin Ø (in) 3/16 in
