Performance

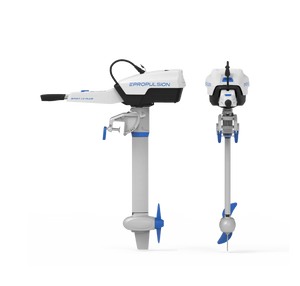

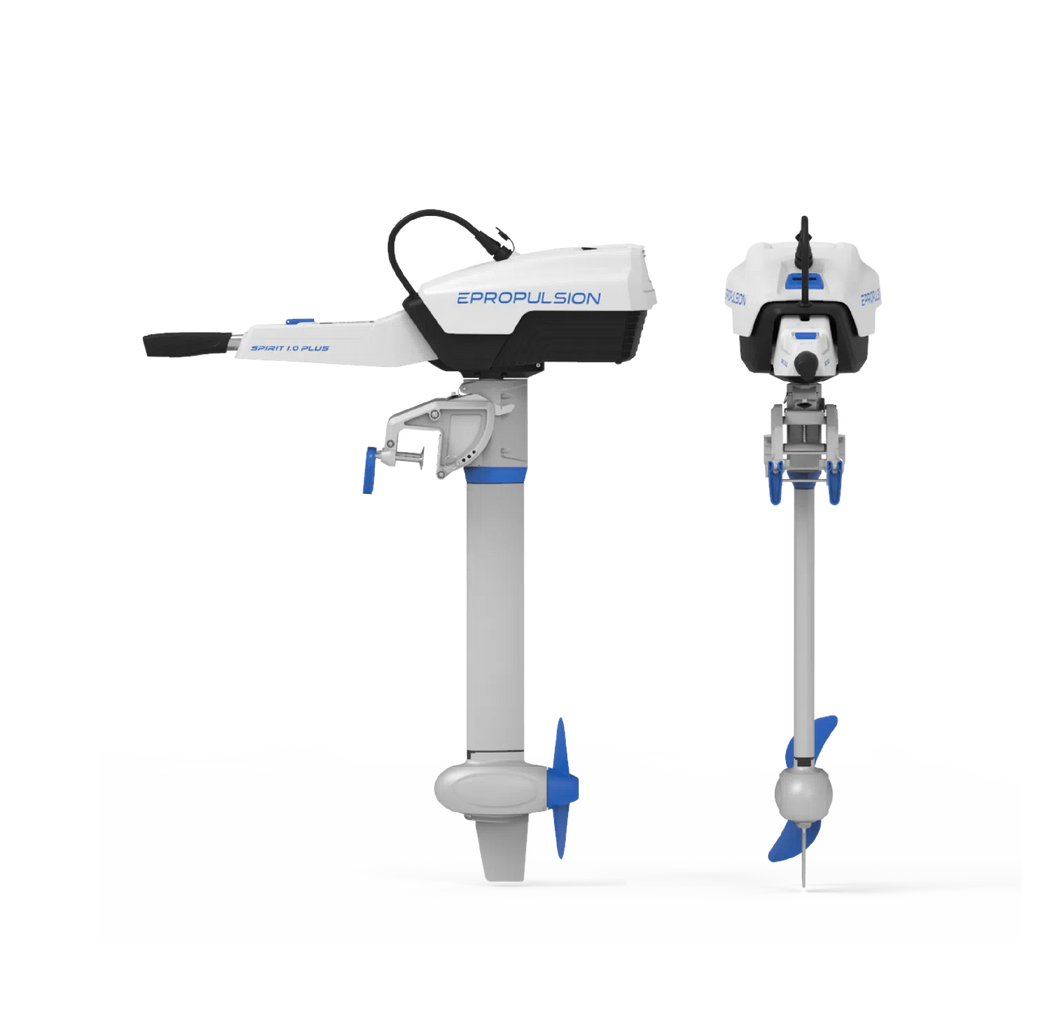

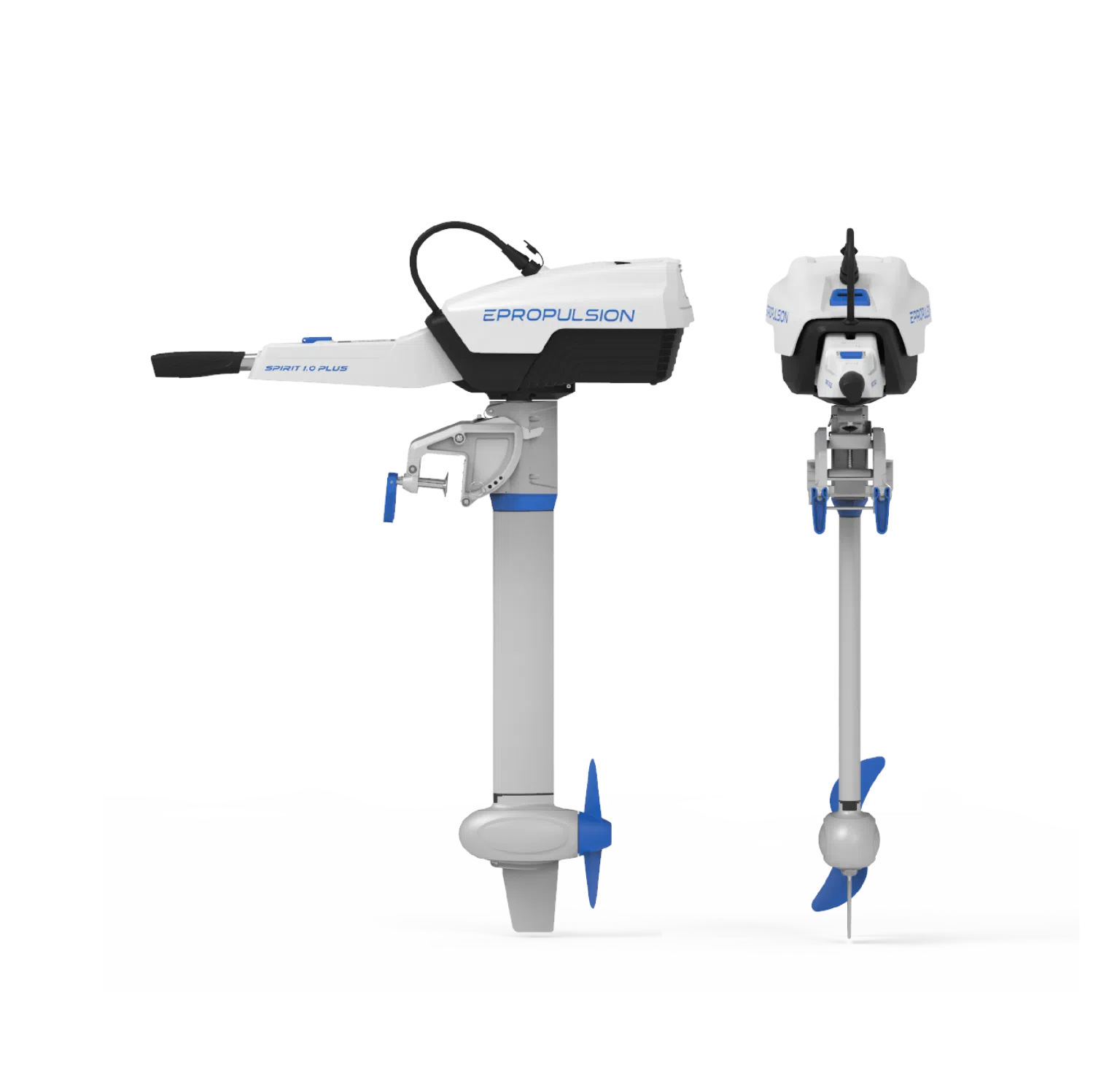

At the core of Spirit 1.0 Plus electric outboard motor, it’s a 1kW BLDC motor, comparable with 3HP petrol outboard (propulsive power).
| Power (W) | Speed (mph / kph) | Runtime (hh:mm) | Range (mile / km) |
|---|---|---|---|
| 35 | 2.2 / 3.5 | 36:25 | 80 / 129 |
| 65 | 2.7 / 4.3 | 19:35 | 53 / 85.3 |
| 125 | 3.5 / 5.6 | 10:00 | 35 / 56 |
| 250 | 4.4 / 7.1 | 5:00 | 22 / 35.5 |
| 500 | 5.3 / 8.5 | 2:30 | 13.3 / 21.3 |
| 750 | 5.7 / 9.2 | 1:40 | 9.5 / 15.3 |
| 1000 | 6.2 / 10 | 1:15 | 7.8 / 12.5 |
* The performance data is based on a 12-foot aluminum boat with one person and one Spirit battery Plus in calm lake water. The actual speed, range and running time may vary because of different boats, load, weather, etc.
With one charge, you can go 22 miles at 4.5 mph, or go fishing all day long at trolling speed.
Battery
The integrated rechargeable battery is lightweight, only 19 lbs or 8.7 kg, and robust for tough conditions.
Specs
| Spirit 1.0 Plus | |
| Power | 1 kW |
| Input Voltage | 39V – 60V |
| Standard Battery | Spirit Battery Plus, 1276 Wh li-ion polymer |
| Motor Weight* | 10.6 kg / 23.4 lbs |
| Battery Weight | 8.7 kg / 19.2 lbs |
| Charing Time | Standard charger: 8.5 Hrs; Fast charger: 3.5 Hrs |
| External Battery | Yes, and E-Series Battery recommended |
| Propeller | 11″ × 5.8″ 2-blade composite propeller |
| Trim / Tilt Angle | 0°, 7°, 14°, 21° / 70° |
| Shaft Length | Extra Short, Short, Long |
| Motor | Brushless DC motor |
| Direct Drive | Yes |
* The weight is measured with the short shaft version.
